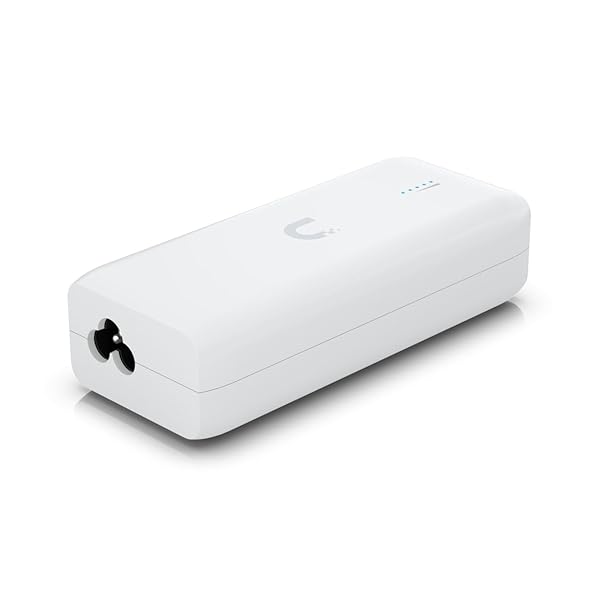

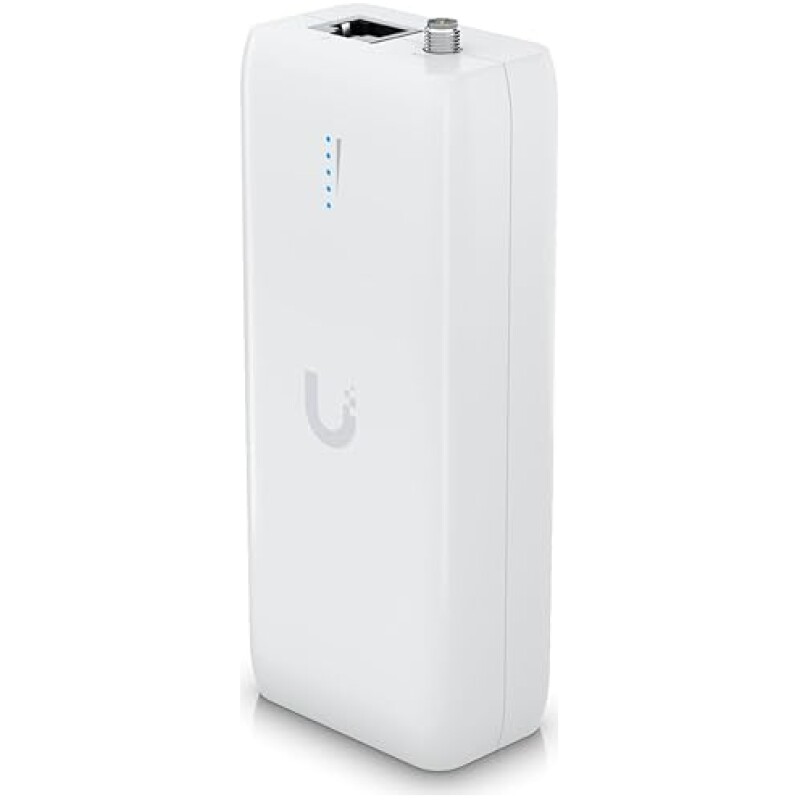

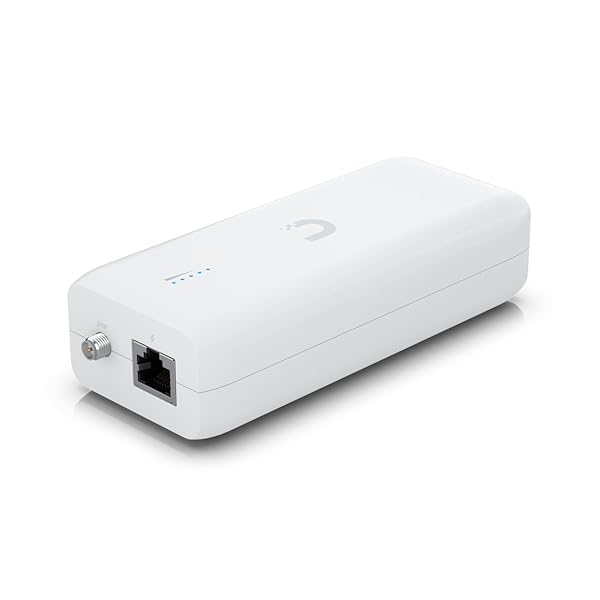

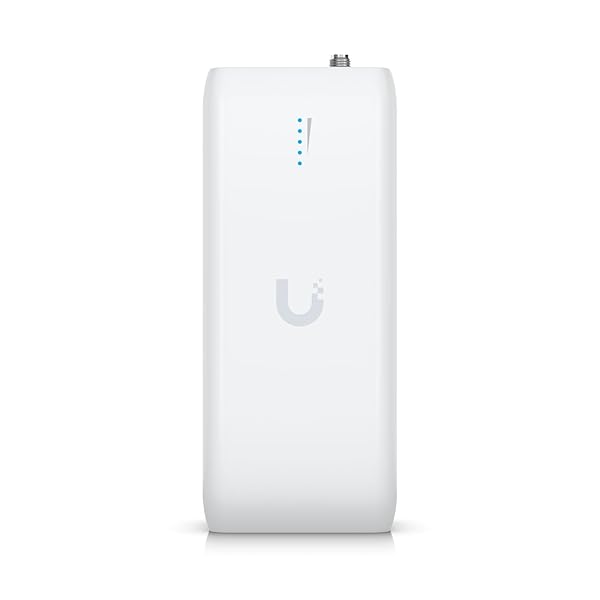

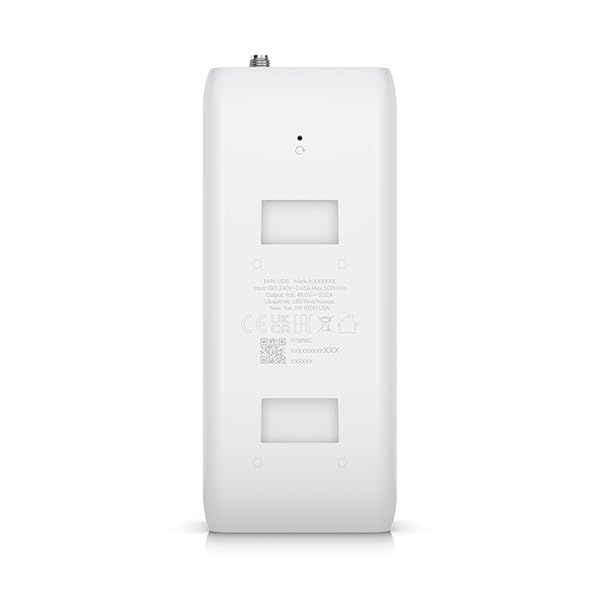

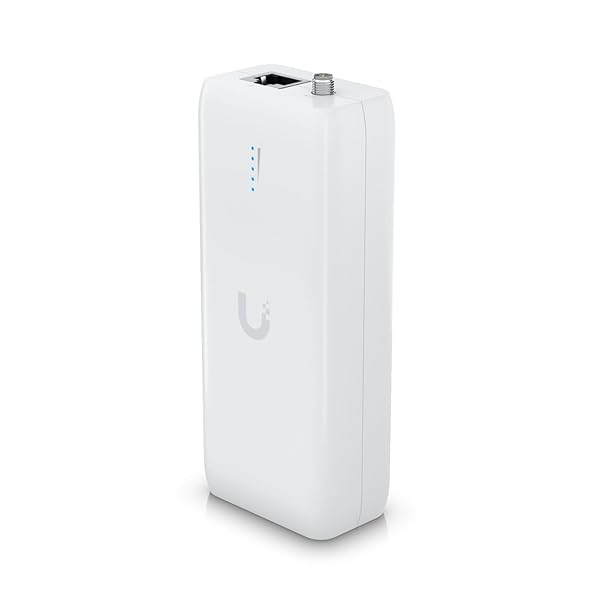

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Dimensions
130 x 55 x 34 mm
(5.1 x 2.2 x 1.3″)
WiFi Standard
WiFi 5
Spatial Streams
2

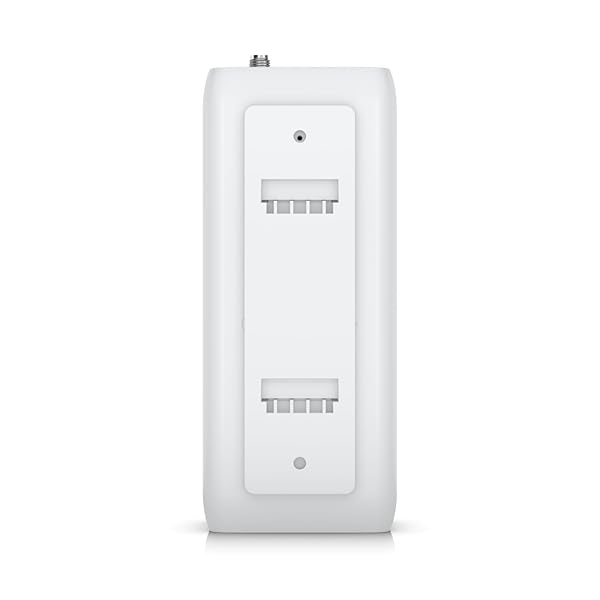

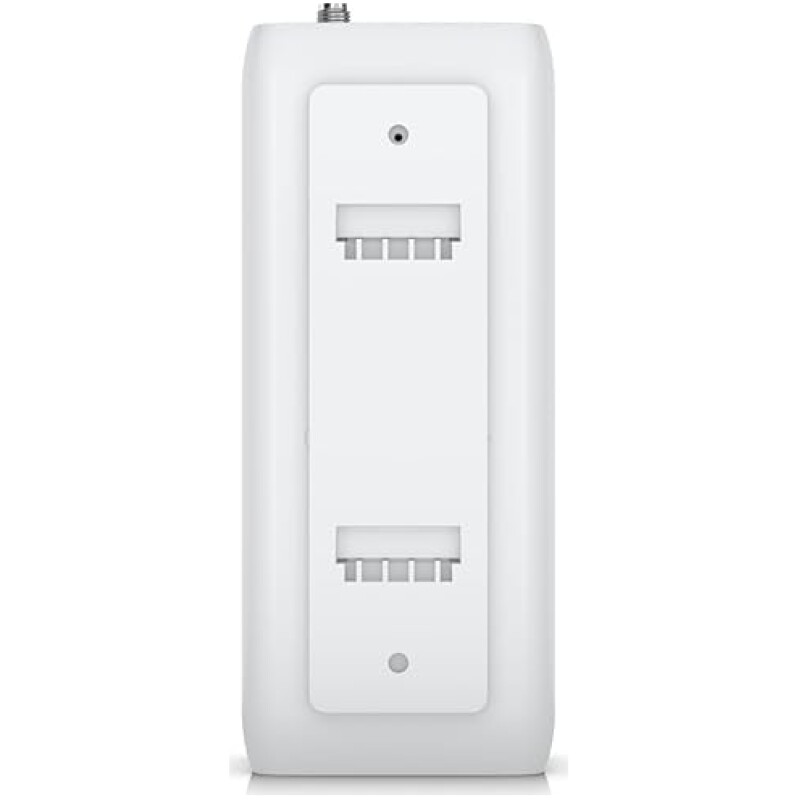

Mounting Locations
Wall/Table

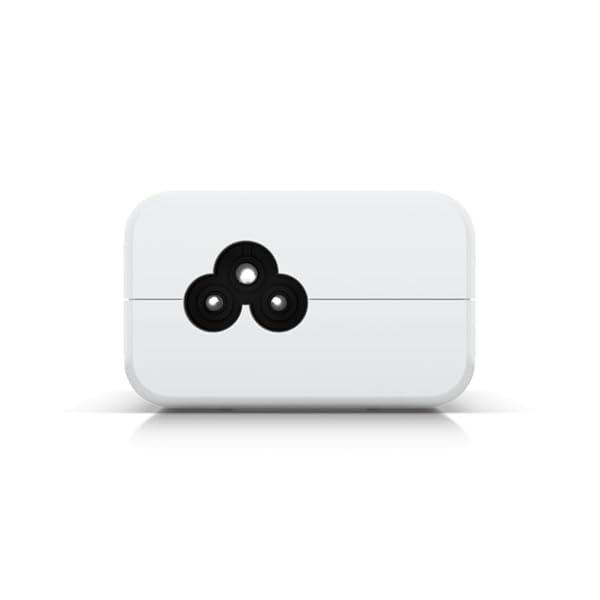

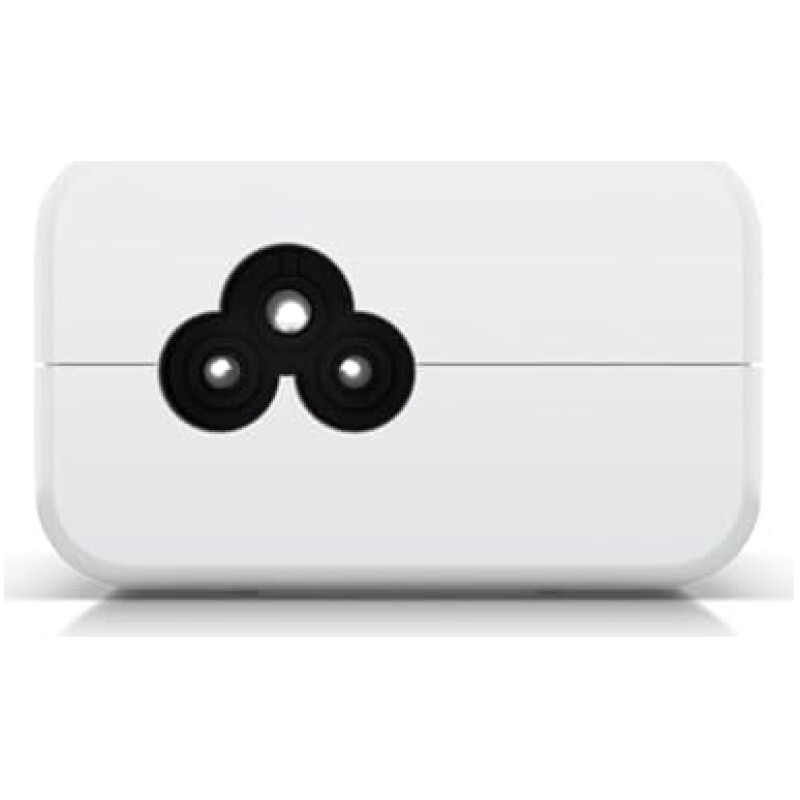

Power Method
100—240V AC, 0.45A Max., 50/60 Hz
MIMO
2 x 2
Max. Data Rate
866.7 Mbps (BW80)
Antenna Gain
Internal antenna: 5 dBi
External omni antenna: 4 dB
Max. TX Power
21 dBm
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
Wireless Security
WPA2 AES (Always On)
Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)
Supported Voltage Range
100—240V AC
Supported Voltage Range
100—240V AC

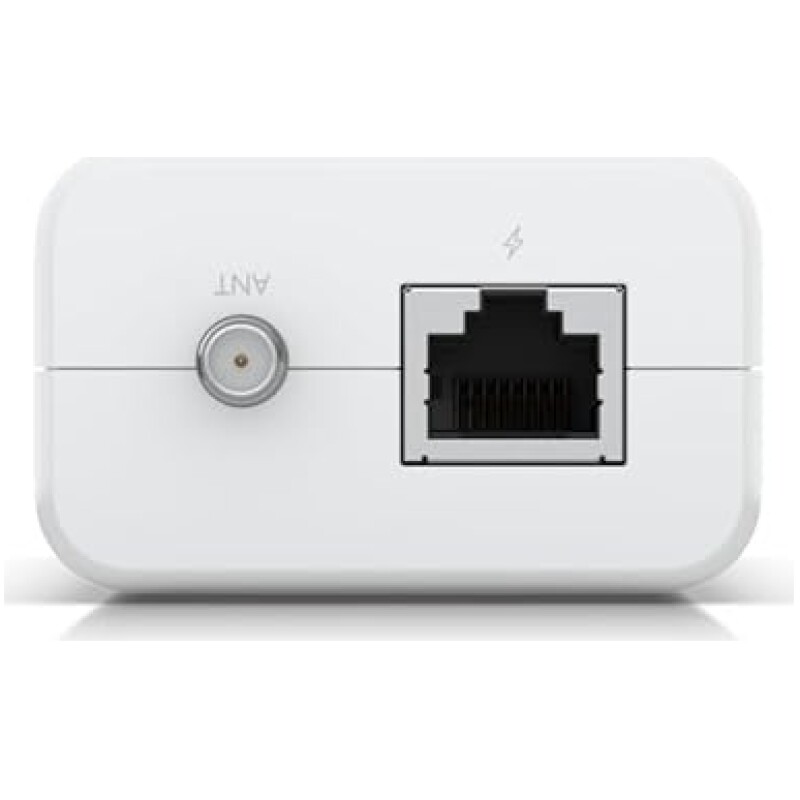

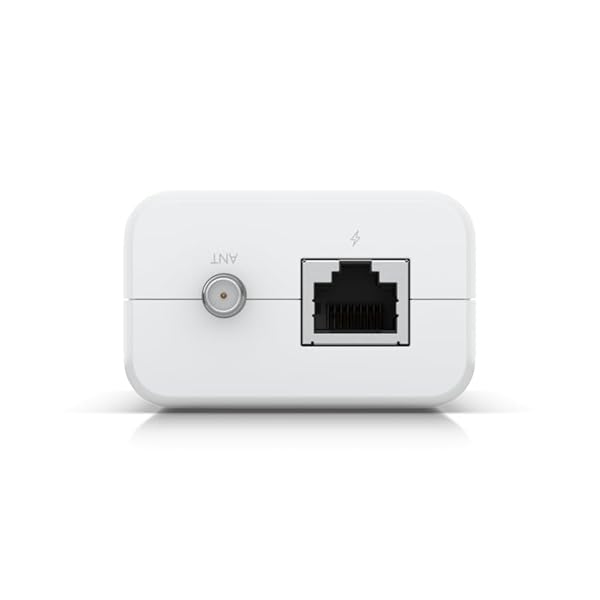

Networking Interface
(1) GbE RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Weight
200 g (7.1 oz)
Mount Material
Polycarbonate
Enclosure Material
Polycarbonate

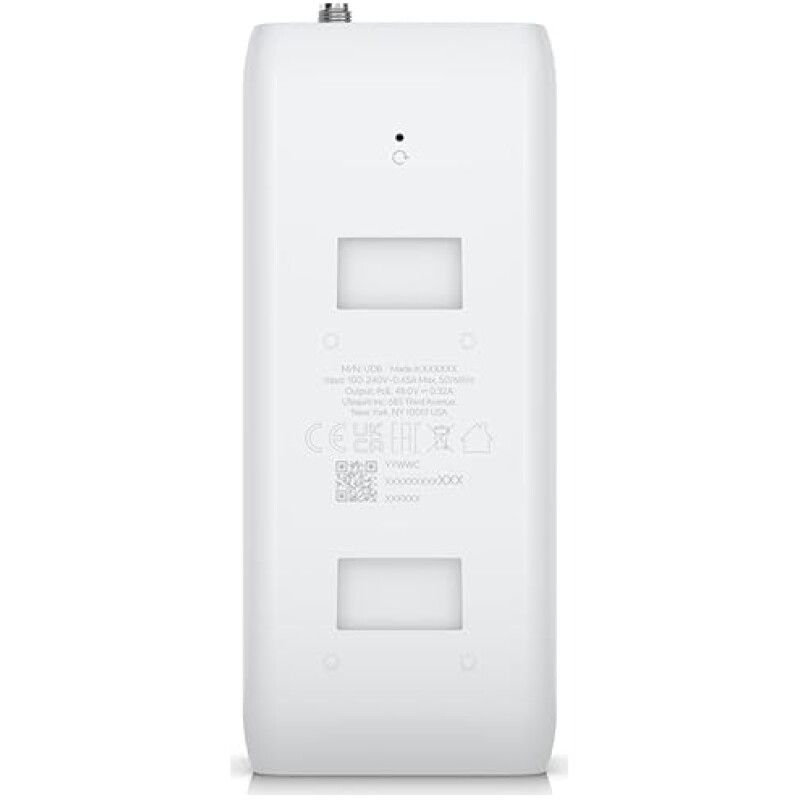

Button
(1) Factory-reset
System LEDs
(4) Blue: signal
(1) White/blue: indicator
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
