- H610M-HDV/M.2 D5 Gen5Unique FeatureSuperb Productivity- PCIe Gen5 (Graphics)- Dual Channel DDR5Rock-Solid Durability- 6+1+1 Power Phase- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyEZ Update- ASRock Auto Driver InstallerCPU- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 TechnologyChipset- Intel H610Memory- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- 14th and 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*- 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*- Max. capacity of system memory: 128GB*- Supports Intel Extreme Memory Profile (XMP) 3.0BIOS- 128Mb AMI UEFI Legal BIOS with GUI supportGraphics- Intel Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz- 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60HzAudio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)LAN- Gigabit LAN 10/100/1000 Mb/s- Realtek 8111HWireless LANN/ASlotsCPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 3.0 x1 Slot (PCIE2)StorageChipset:- 1 x Ultra M.2 Socket (M2-1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*- 4 x SATA3 6.0 Gb/s ConnectorsRAIDN/AUSBChipset:- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)- 6 x USB 2.0 (4 Rear, 2 Front)Connector- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub
- Asrock
New !

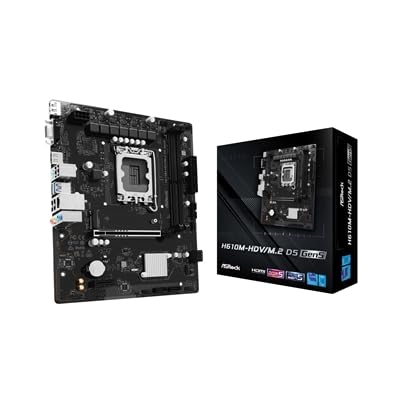

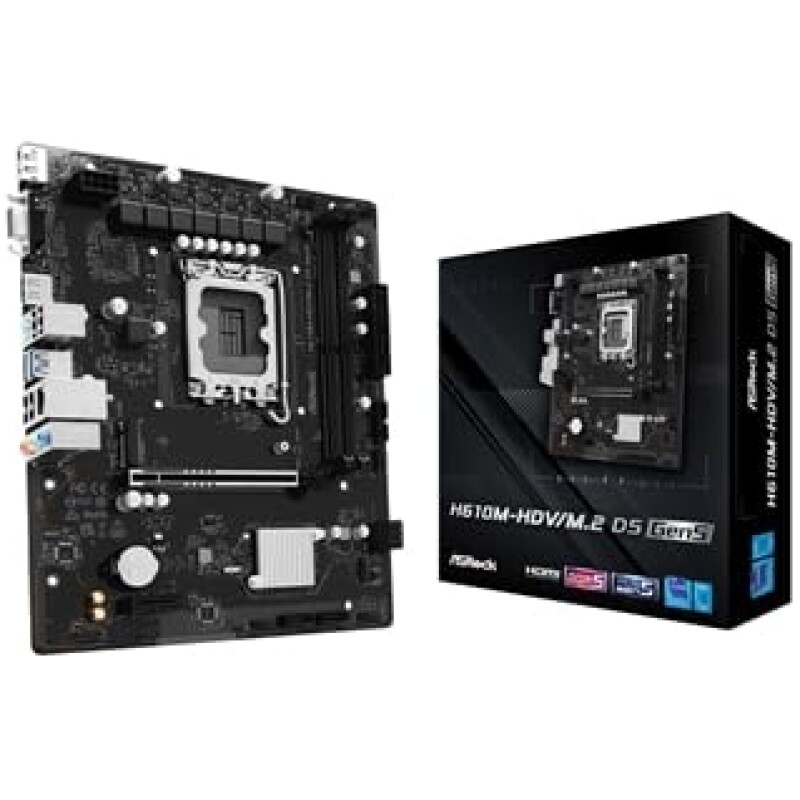

ASRock H610M-HDV/M.2 D5 GEN5 Intel 1700 Socket Motherboard Micro-Atx 2X Ddr5 Slo
£64.75
In stock
Additional information
| Weight | 1.95 lbs |
|---|---|
| MPN |
