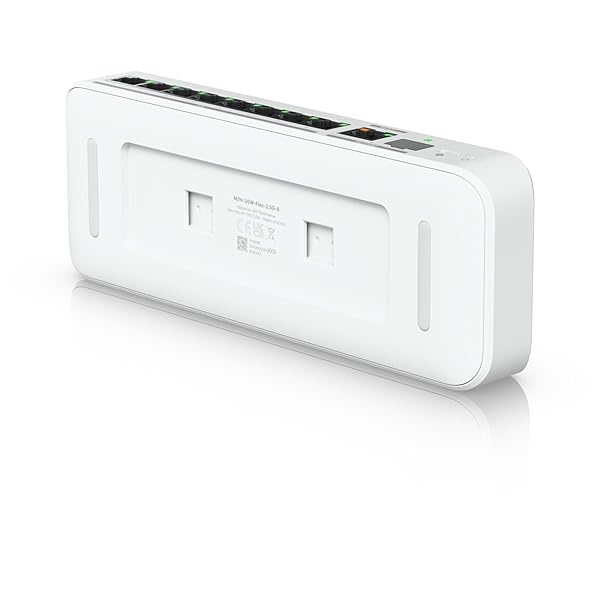

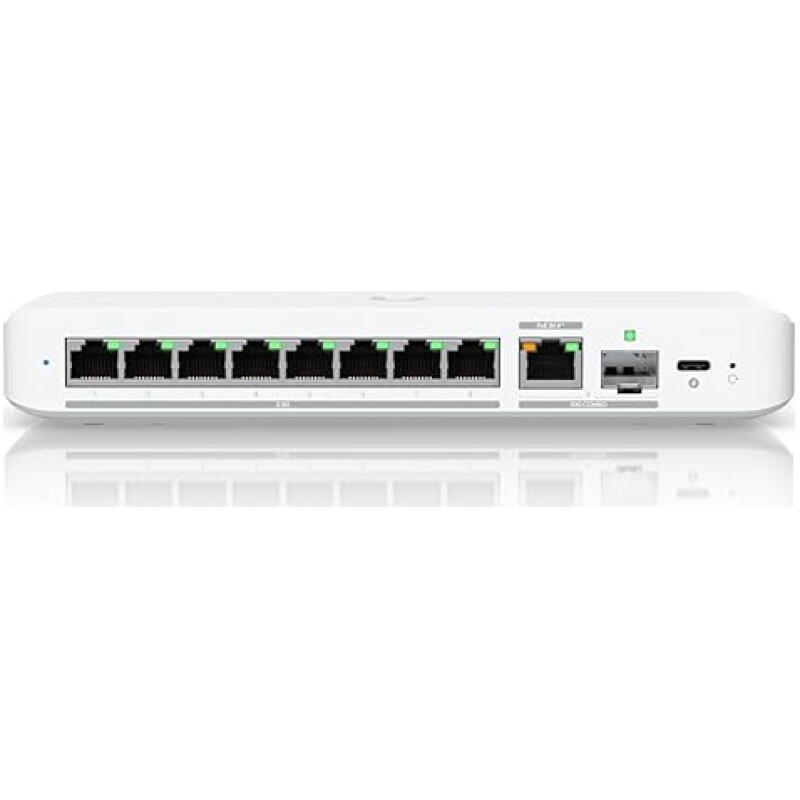

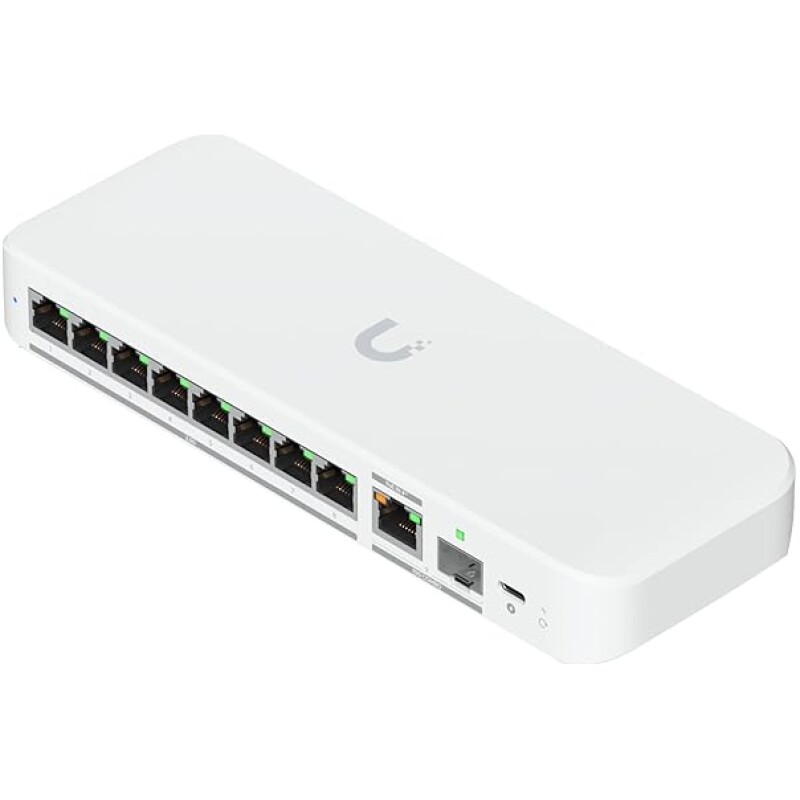

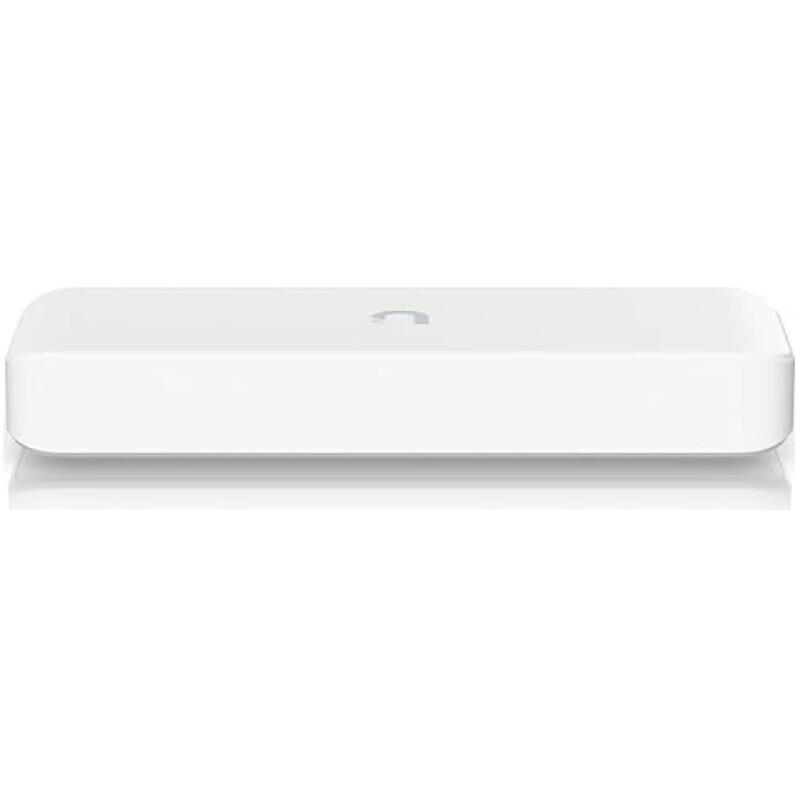

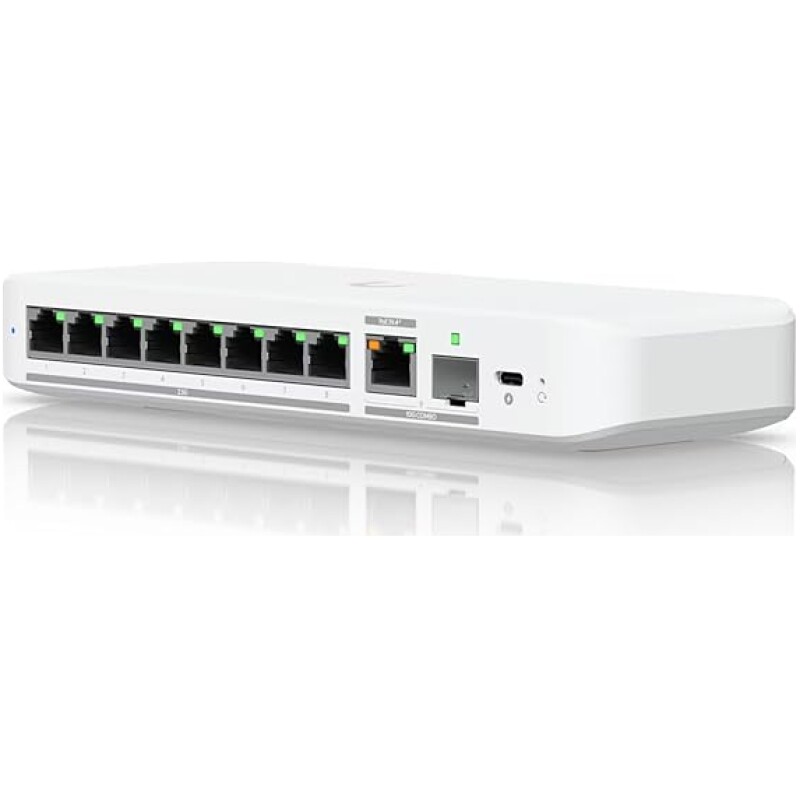

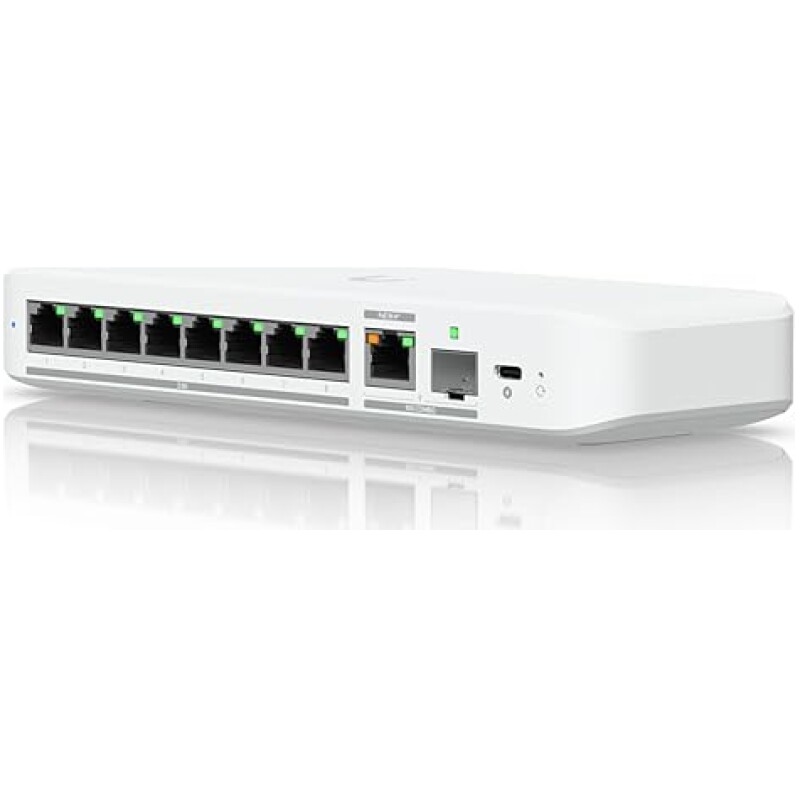

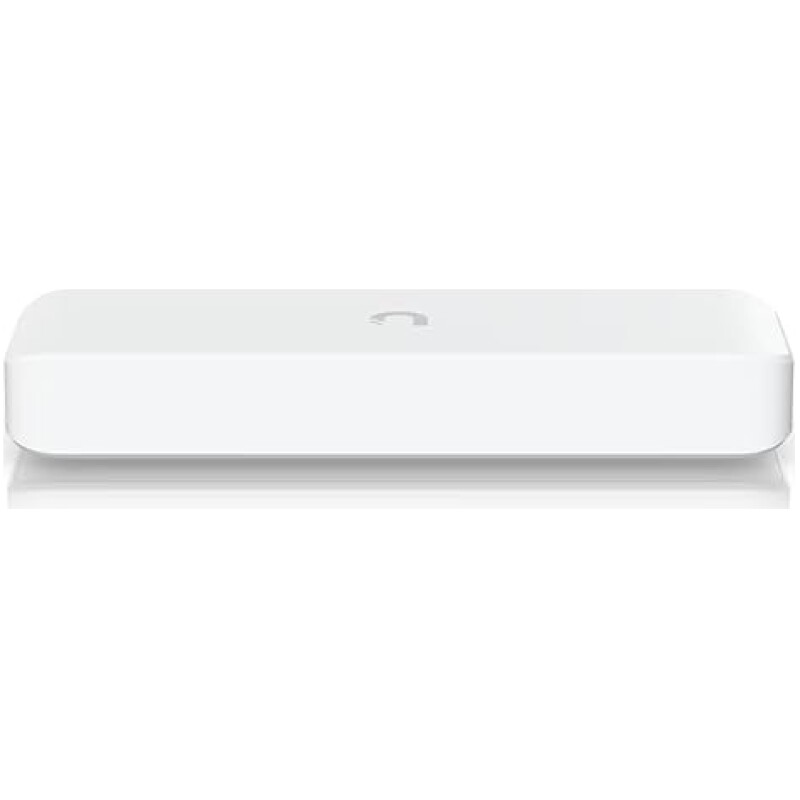

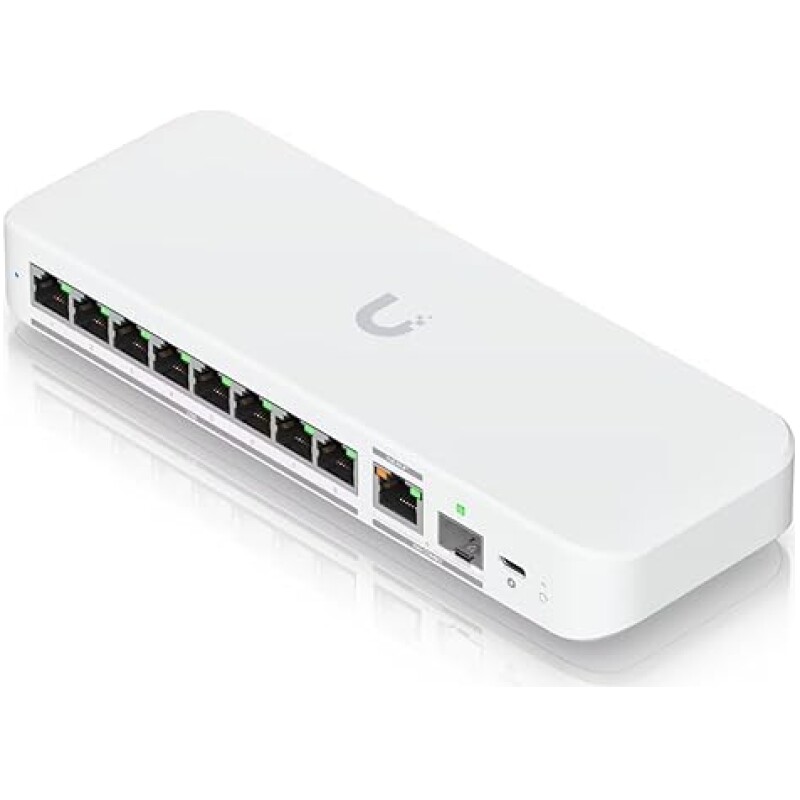

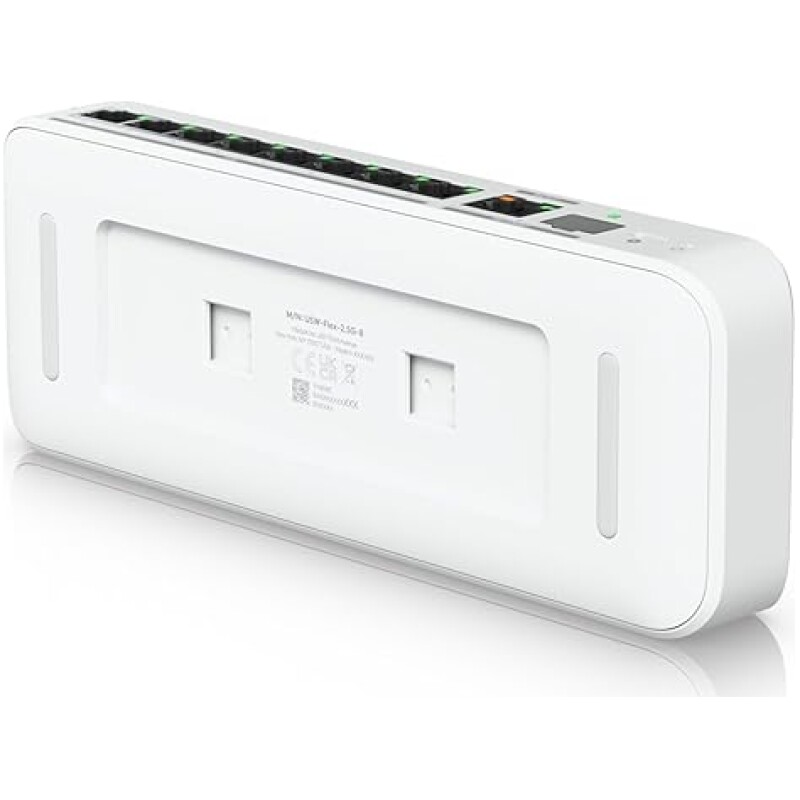

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.
Dimensions
212.9 x 76 x 33.5 mm
(8.4 x 3 x 1.3″)
Port Layout
2.5 GbE RJ45
8
10 GbE RJ45
1
10G SFP+
1
Form Factor
Compact Desktop, wall, DIN, magnetic
Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4000
STP and RSTP
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast and Broadcast Rate Limiting
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
Loop Protection
Yes
Max. Power Consumption
14W with PoE input
14W with AC adapter input
Power Method
(1) USB Type-C, 5V DC, 3A
(1) PoE+
Power Input Method
USB Input
PoE
Power Supply
AC/DC, external, 15W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Management
Ethernet
Weight
395 g (0.87 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Certifications
CE, FCC, IC
