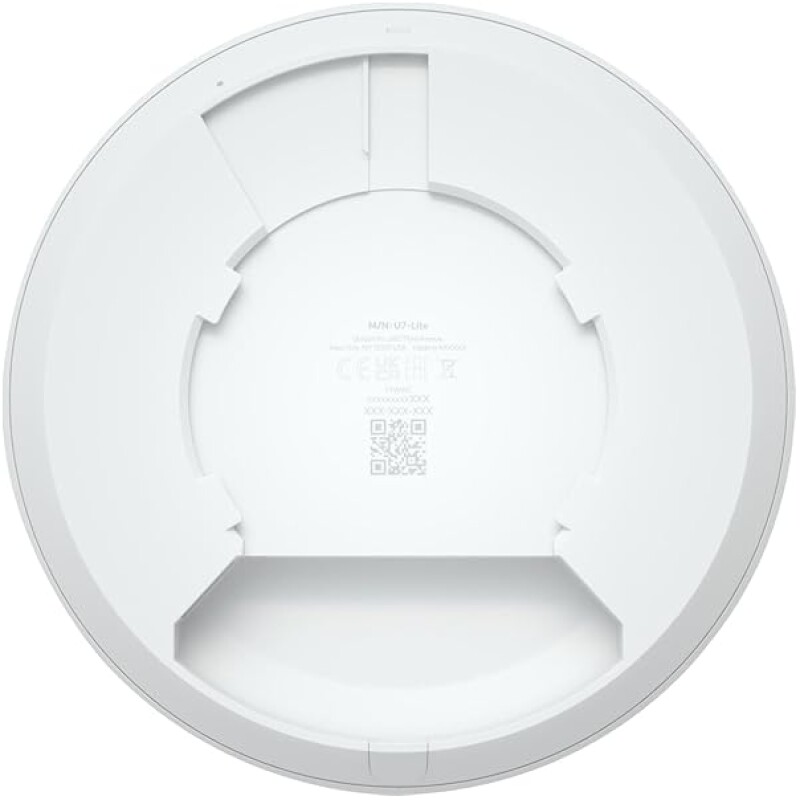

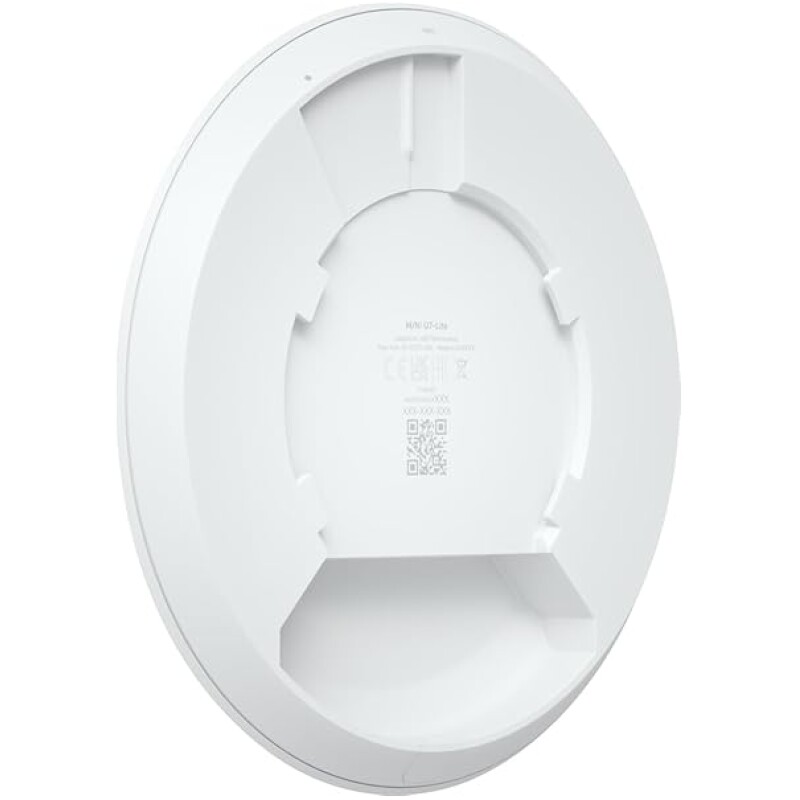

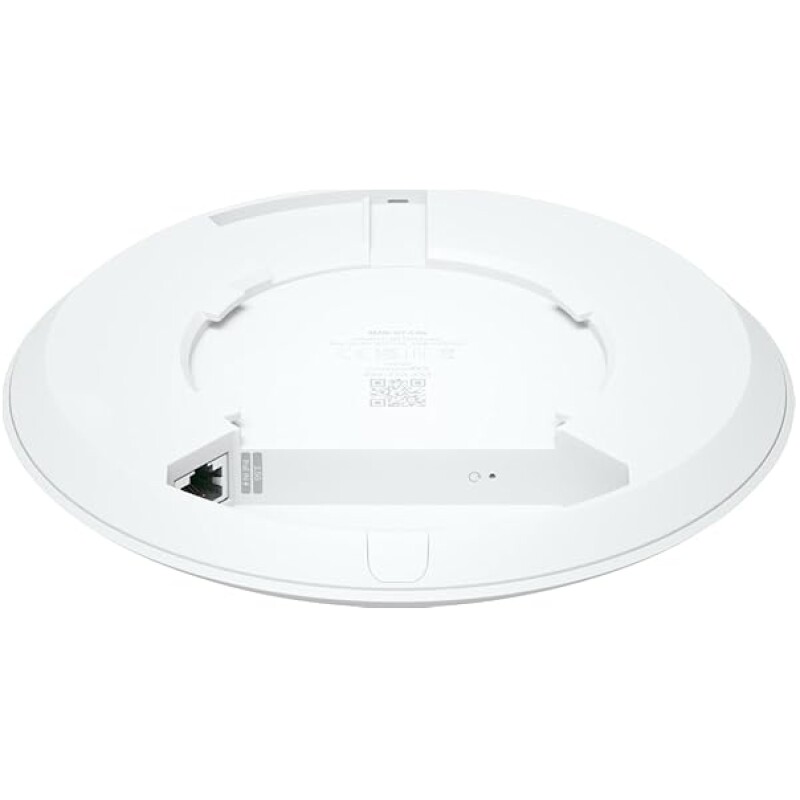

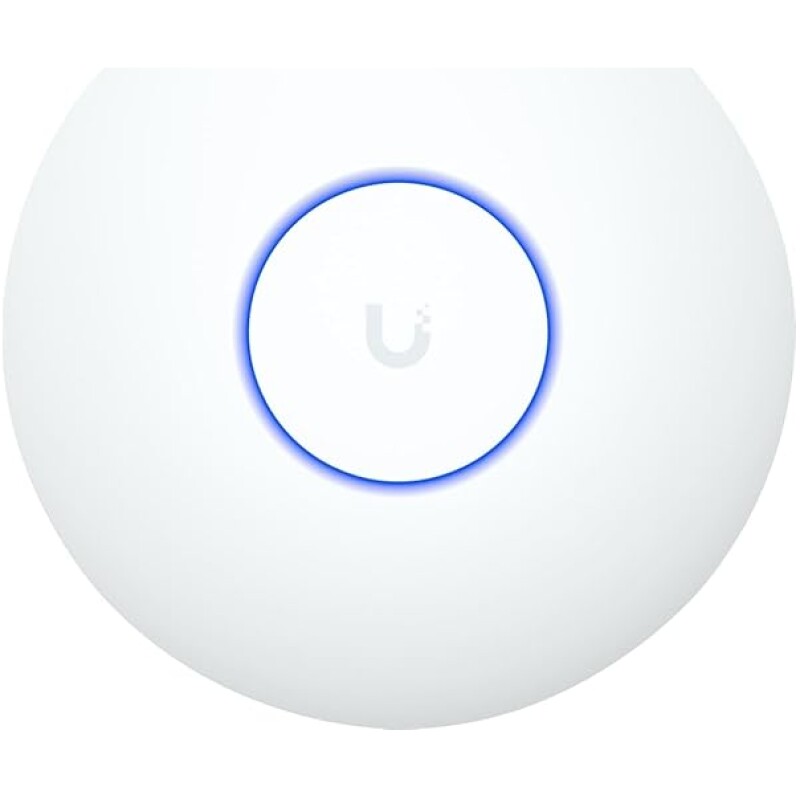

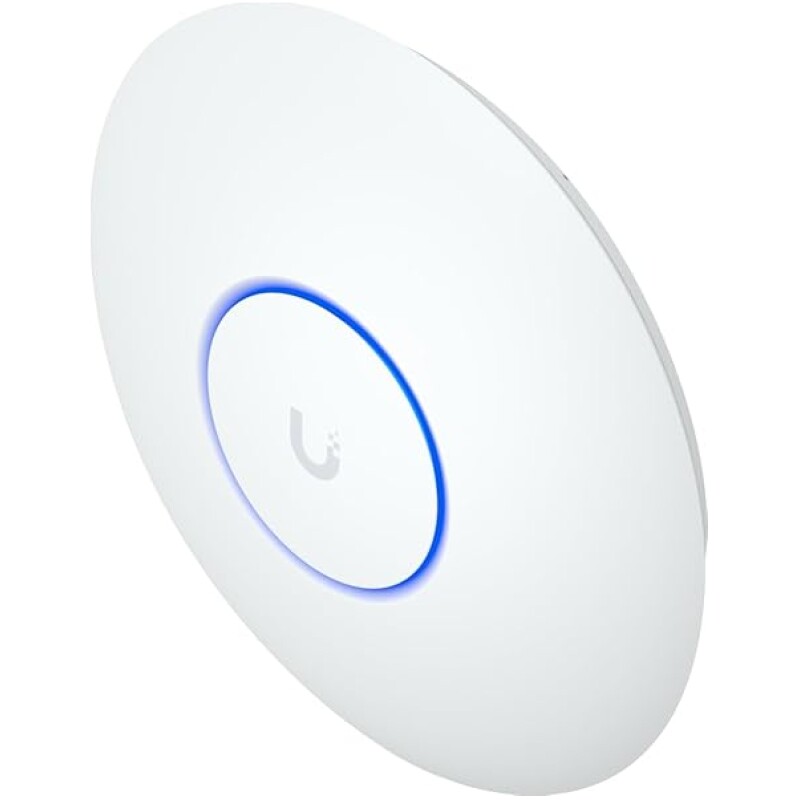

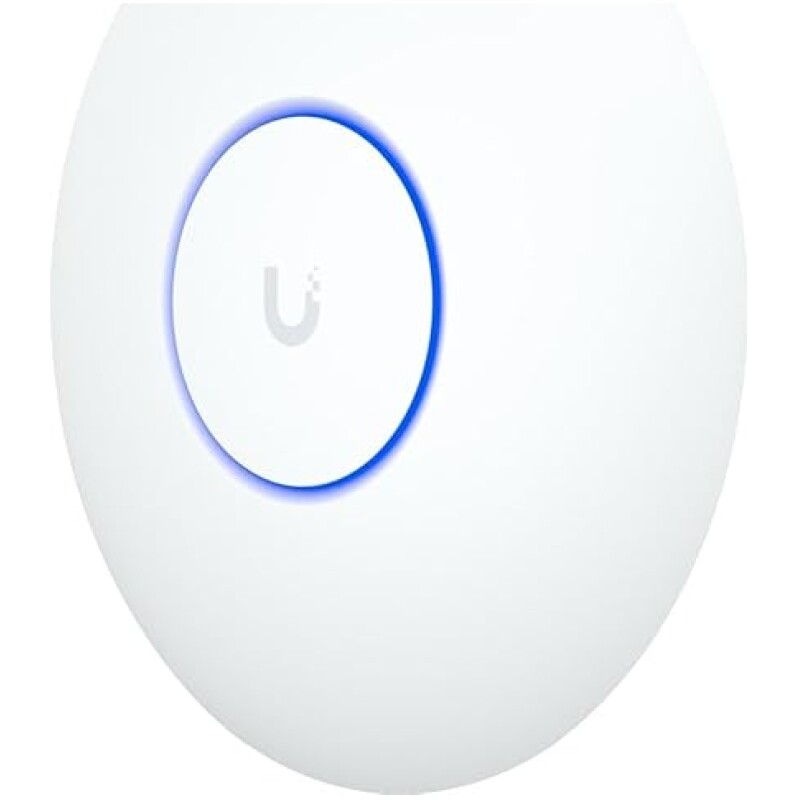

The Ubiquiti UniFi U7 Lite is a wireless access point designed for seamless connectivity in various environments. With a data transfer rate of 4.3 Gbps and support for both 2.4 GHz and 5 GHz Wi-Fi bands, it provides performance for over 200 connected devices, ensuring users experience reliable and high-speed Internet. The device is wall or ceiling-mountable, making it a versatile choice suitable for both residential and commercial spaces. Equipped with features such as 2×2 MU-MIMO technology and fast roaming, the U7 Lite enhances network efficiency and user experience. It incorporates security measures like TLS encryption and various authentication methods, including RADIUS and RADSEC, to protect user data. With its durable design, operating temperature range from -30°C to 40°C, and humidity tolerance, this device is built to function in diverse conditions.
- Delivers a data transfer rate of 4.3 Gbps for Internet access
- Supports over 200 connected devices for extensive network coverage
- Equipped with 2×2 MU-MIMO technology for performance
- Includes security features like TLS encryption
- Wall or ceiling-mountable design for installation flexibility
Dimensions
d171.5 x 33 mm
(d6.8 x 1.3″)
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
115 m2 (1,250 ft2)
Max. Client Count
200+
Uplink
2.5 GbE

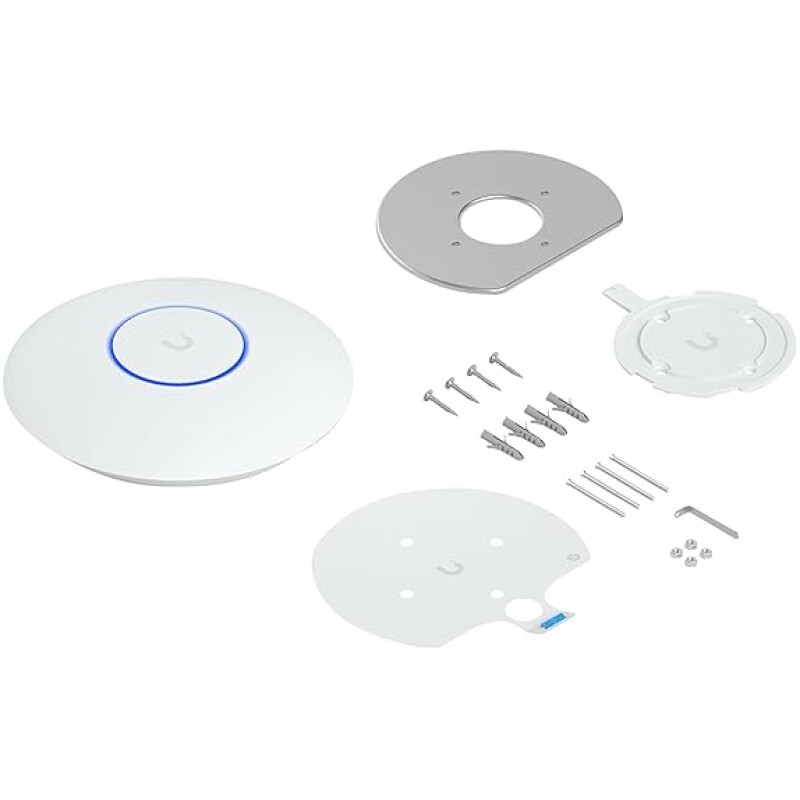

Mounting
Ceiling, Wall
(Lite Mount Included)
Power Method
POE
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Max. Power Consumption
13W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs
System
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
CE, FCC, IC
