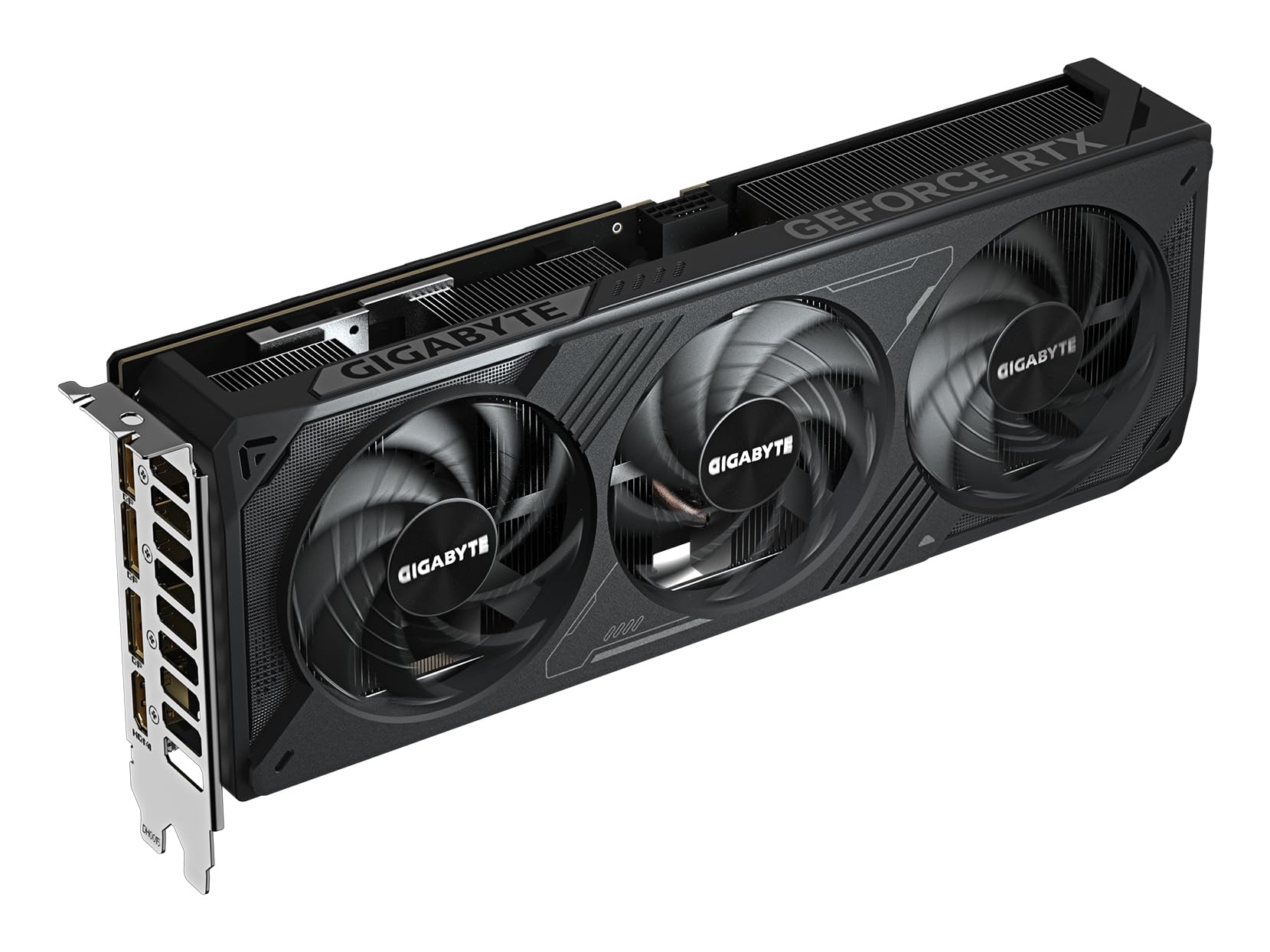

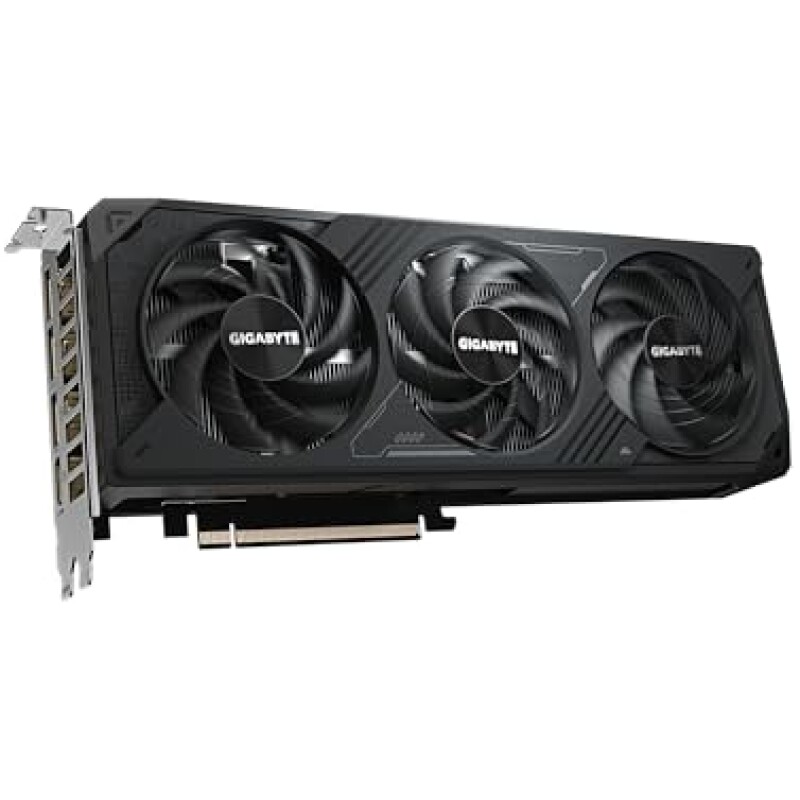

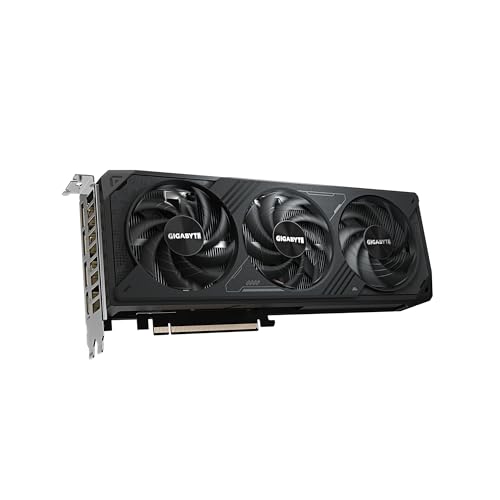

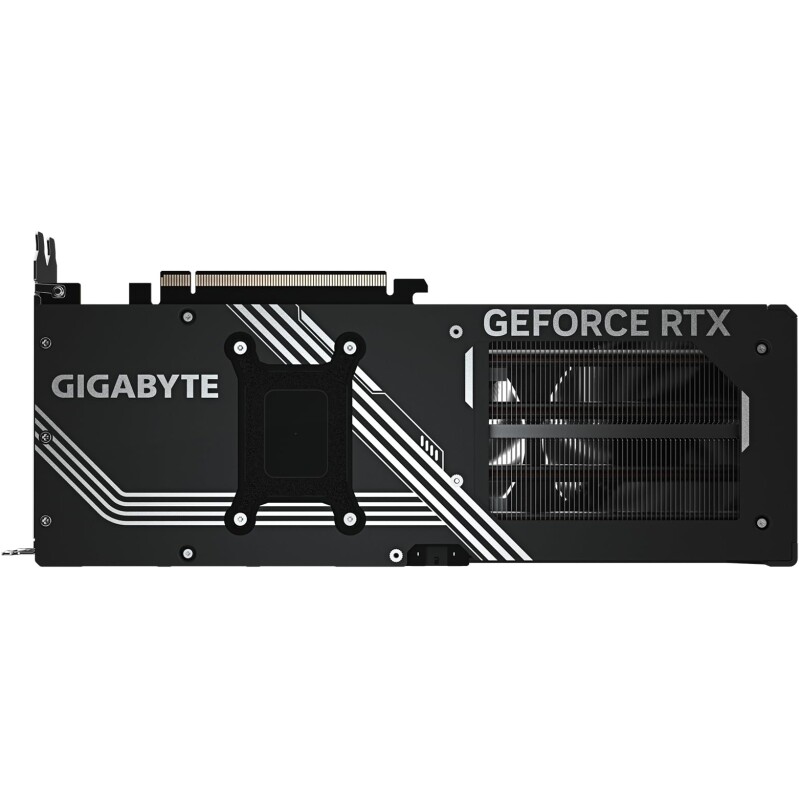

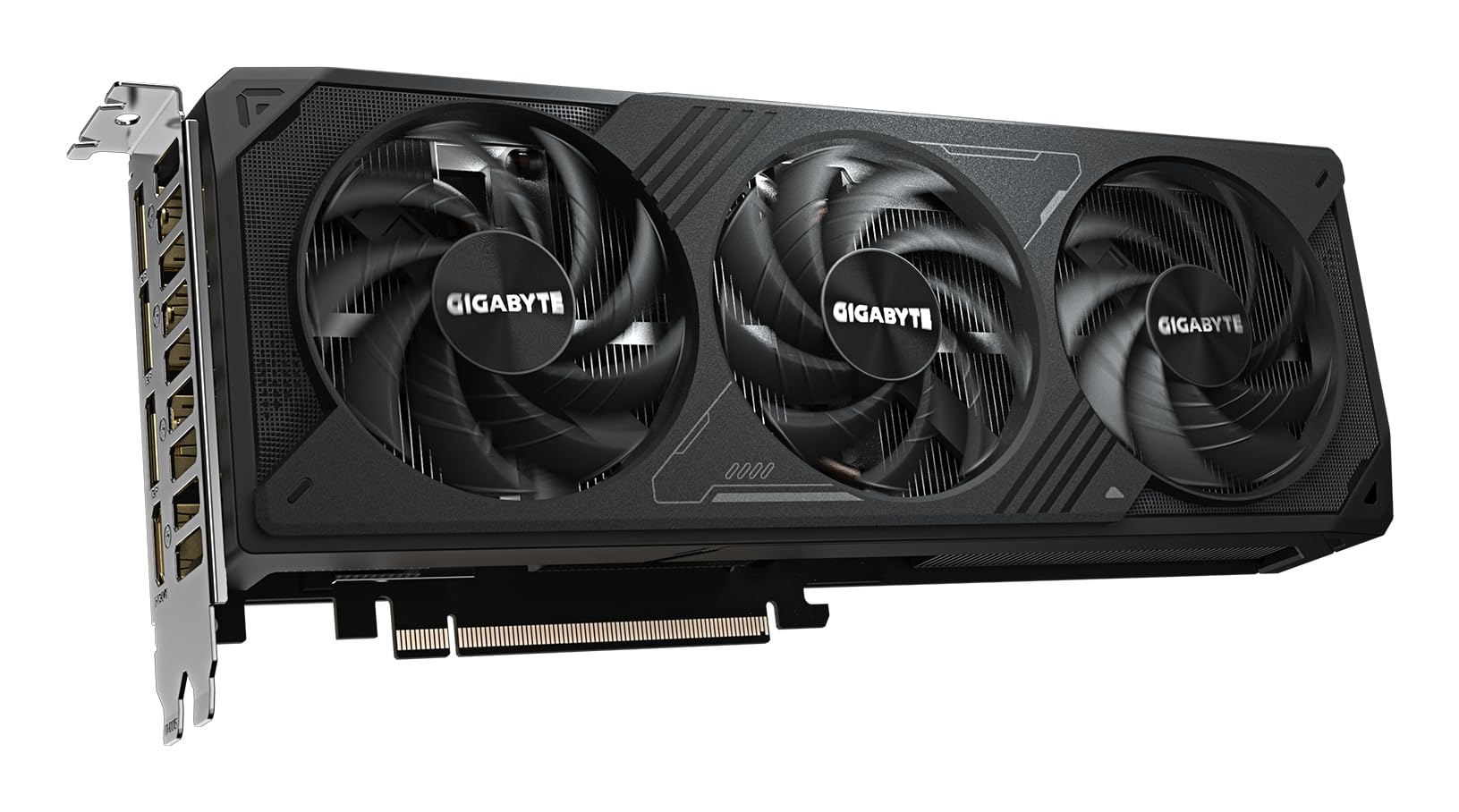

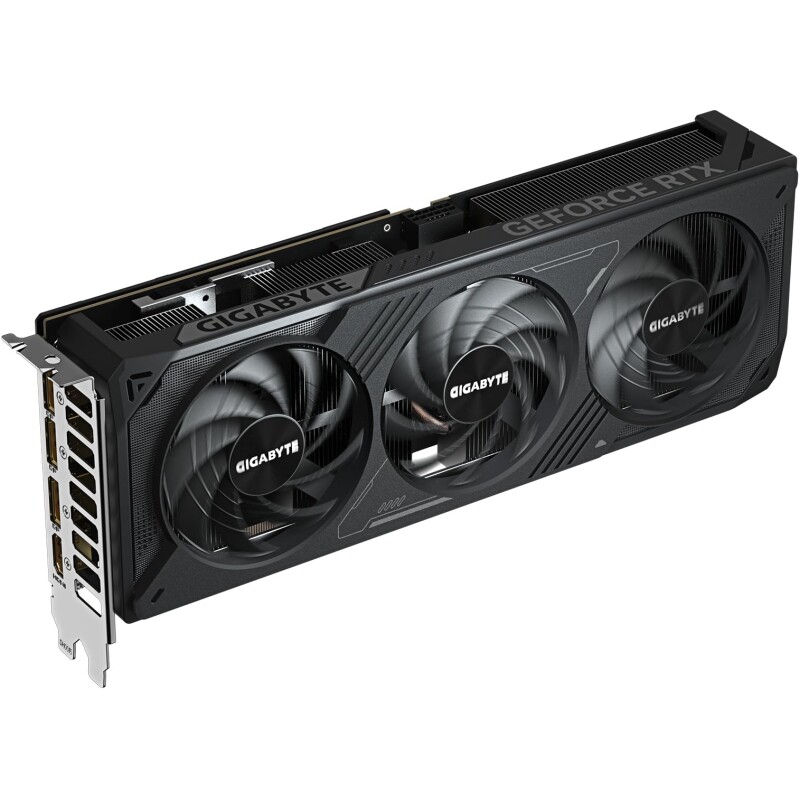

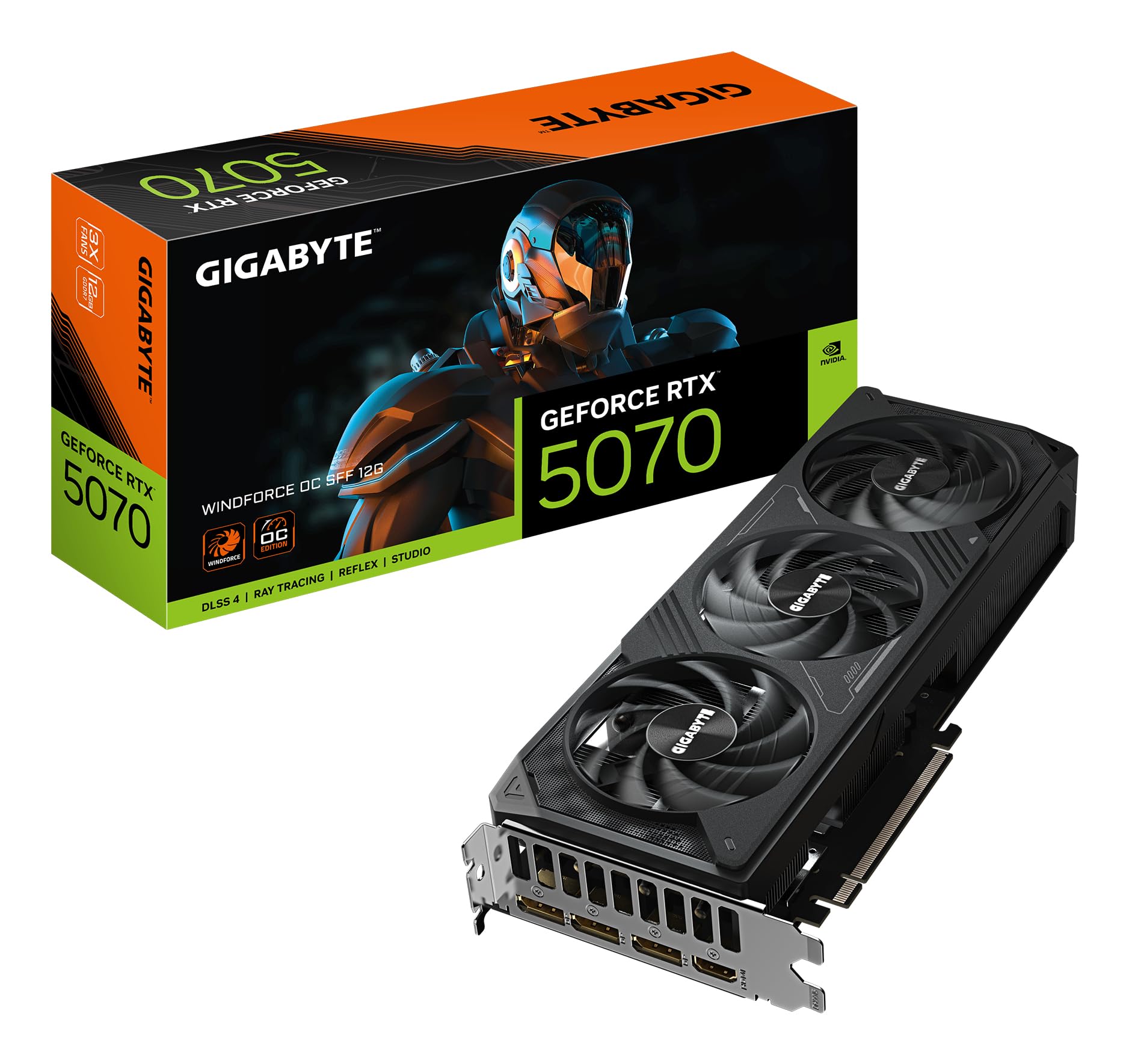

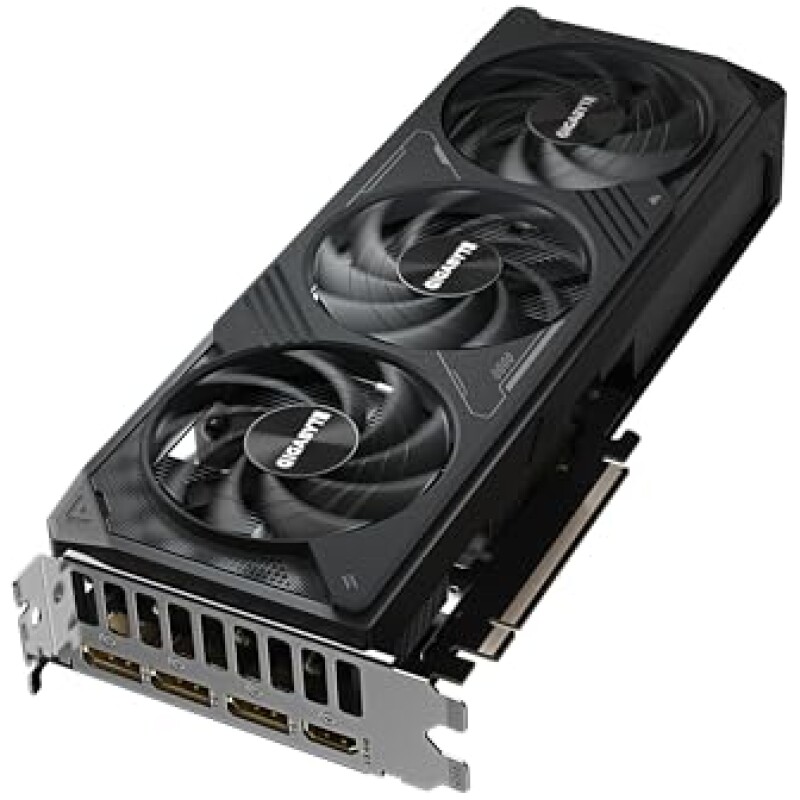

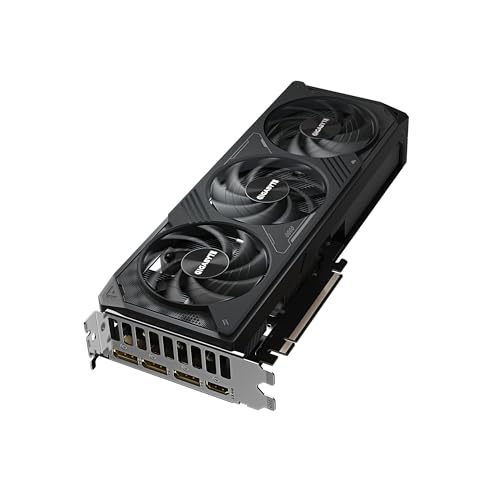

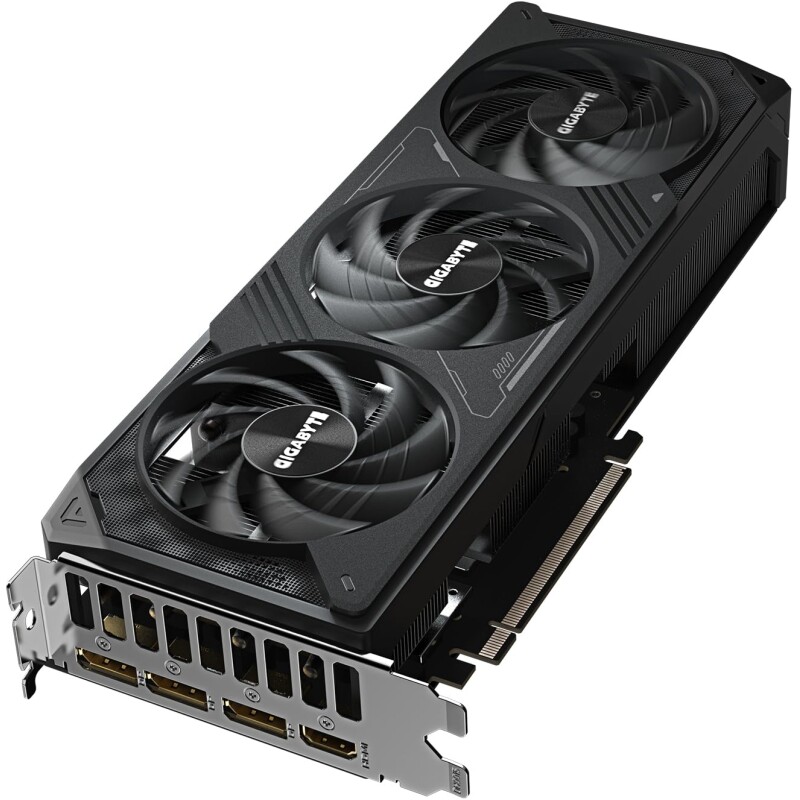

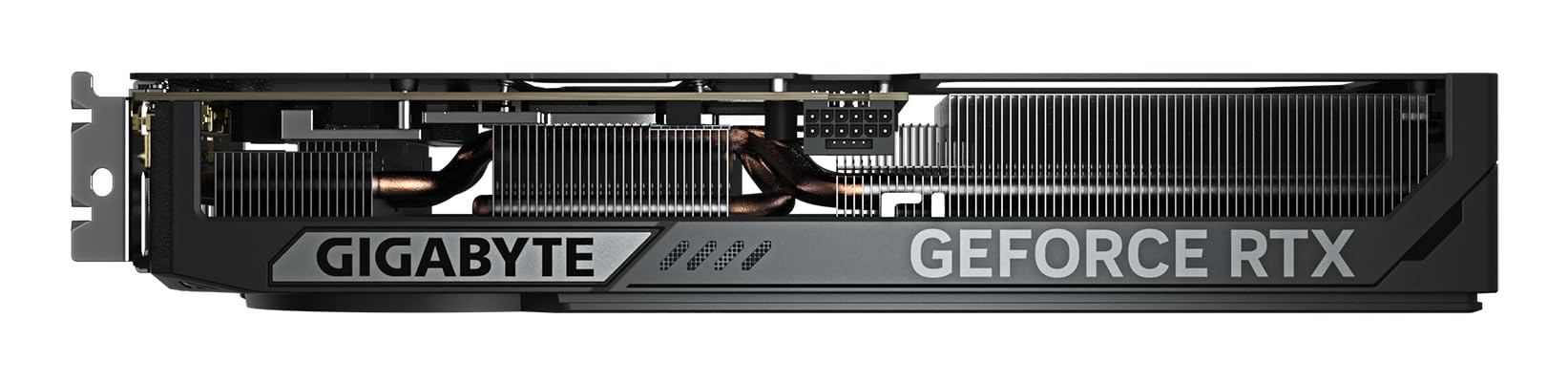

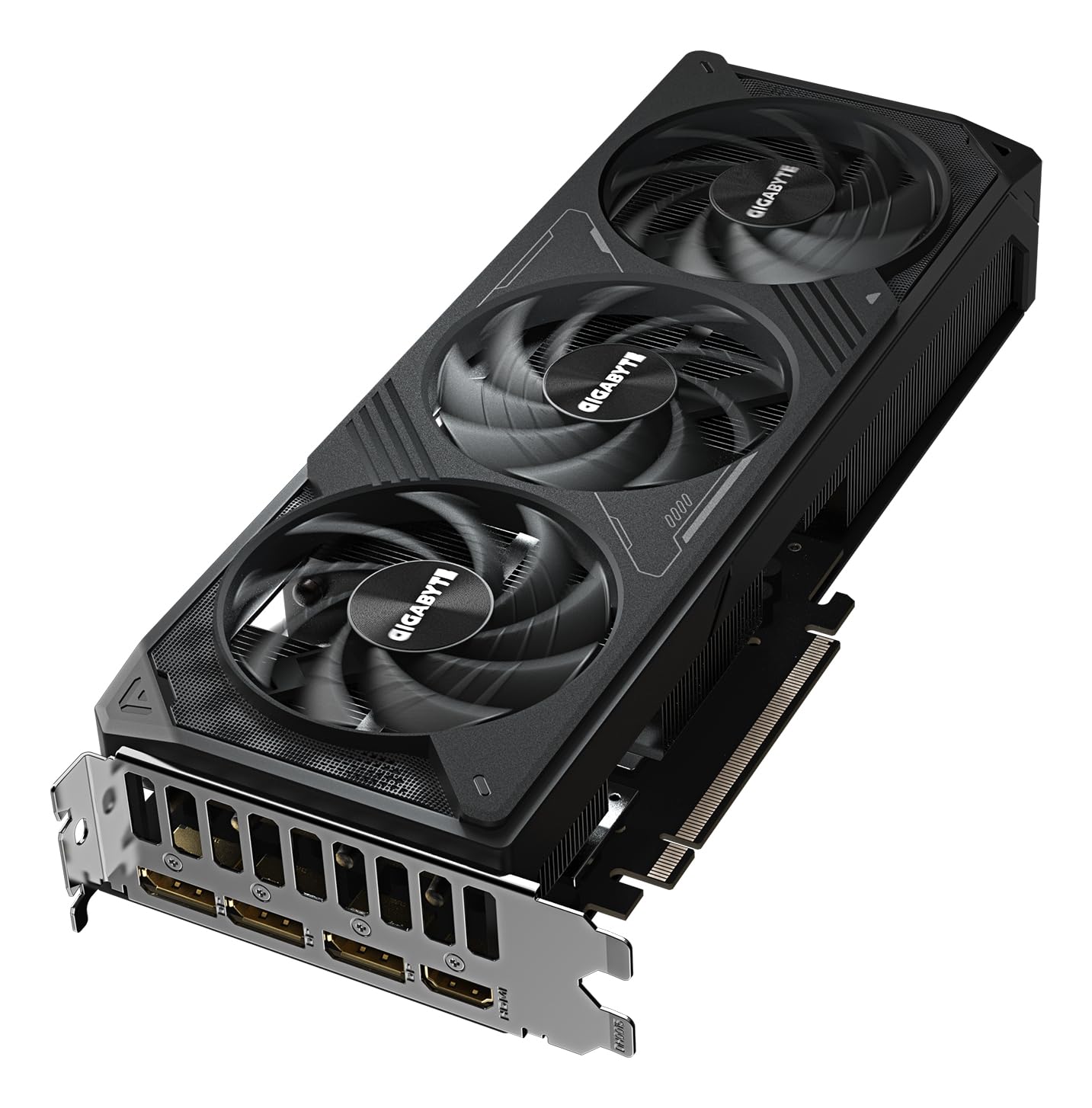

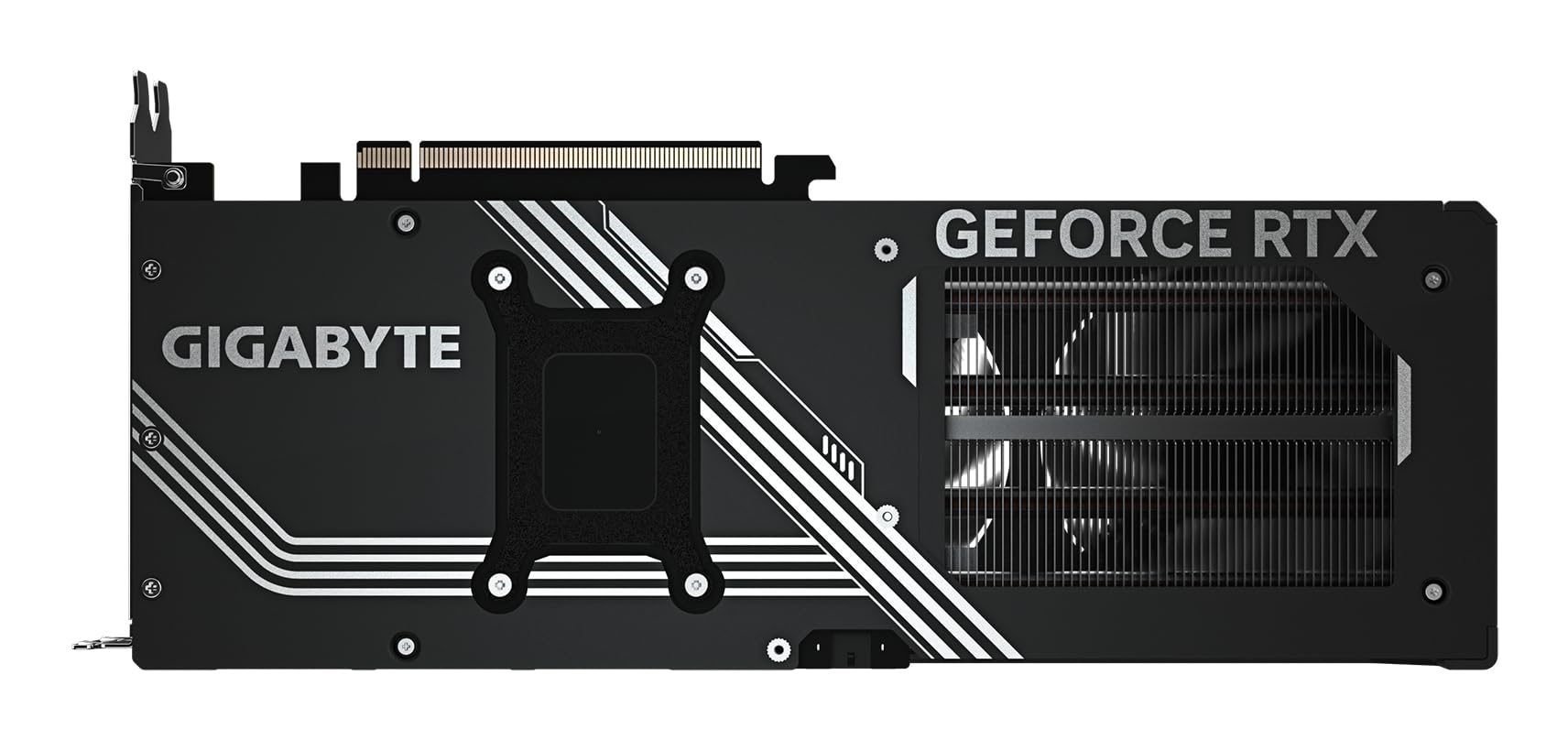

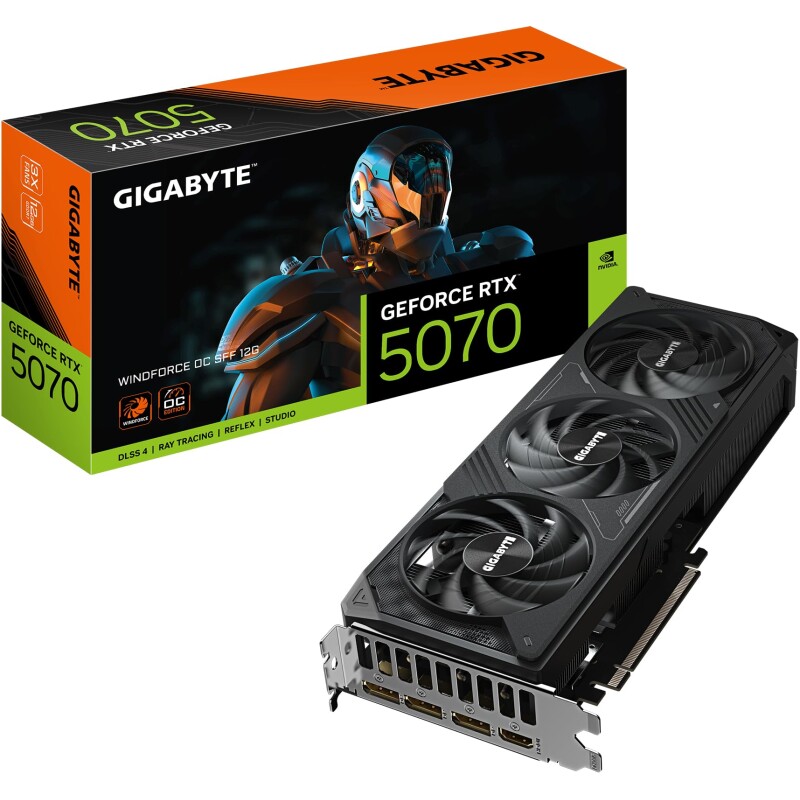

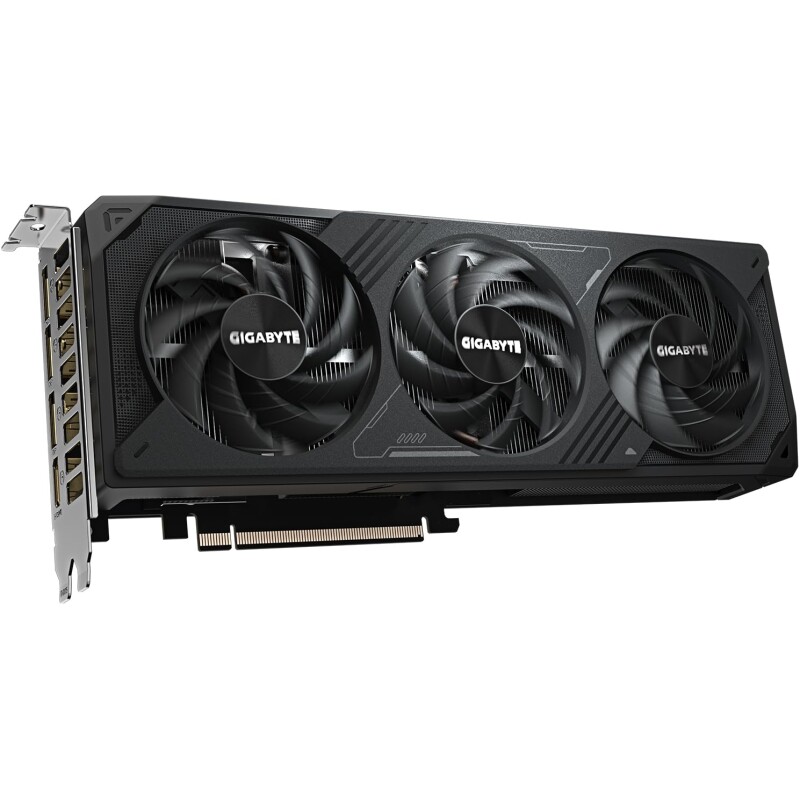

GeForce RTX 5070 WINDFORCE OC SFF 12G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface

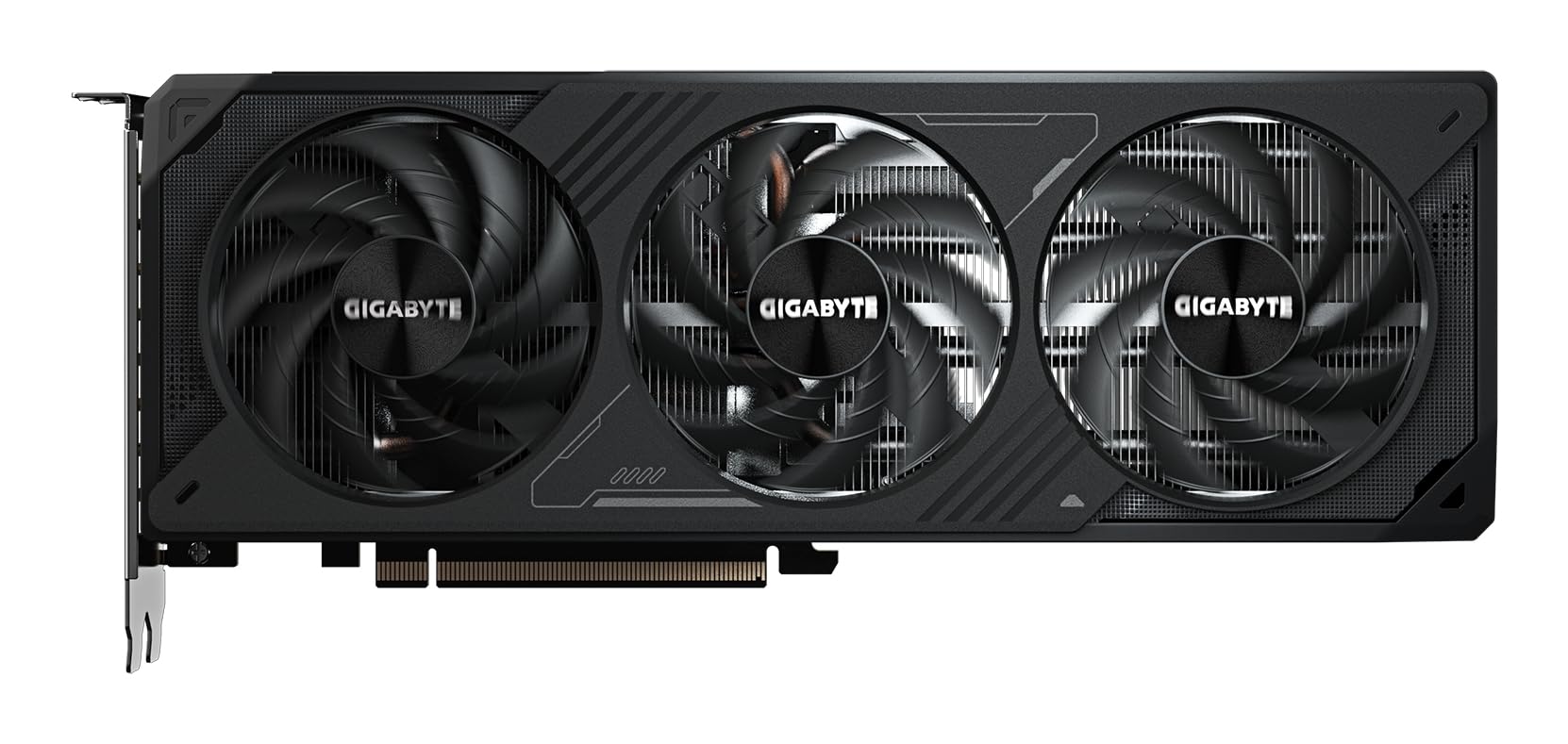

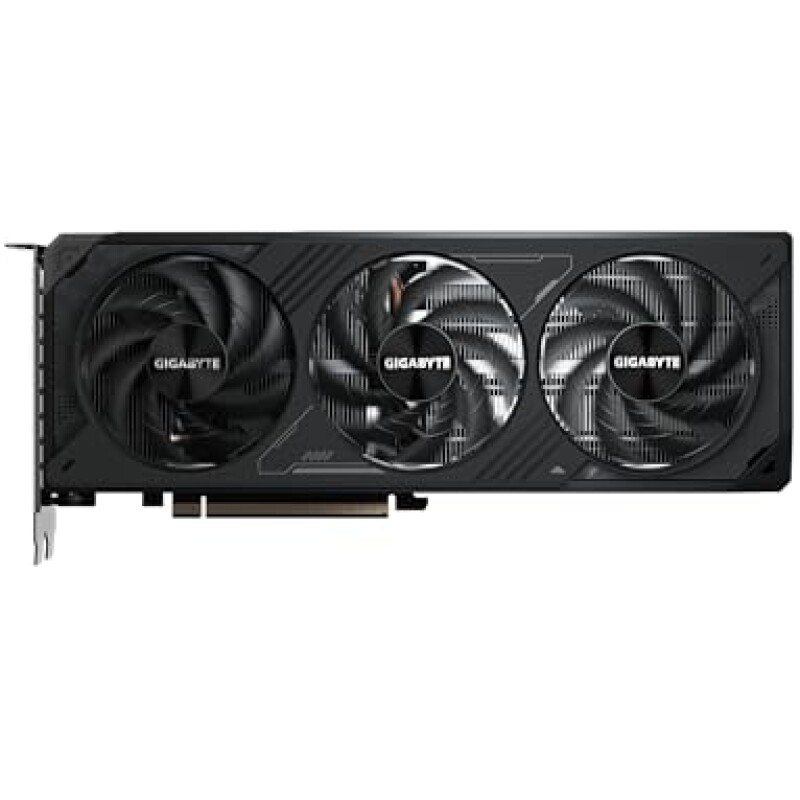

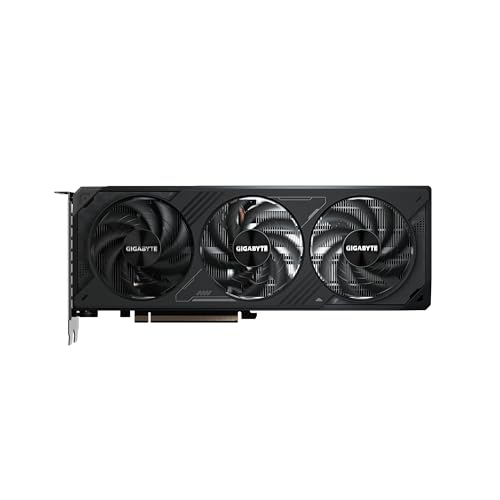

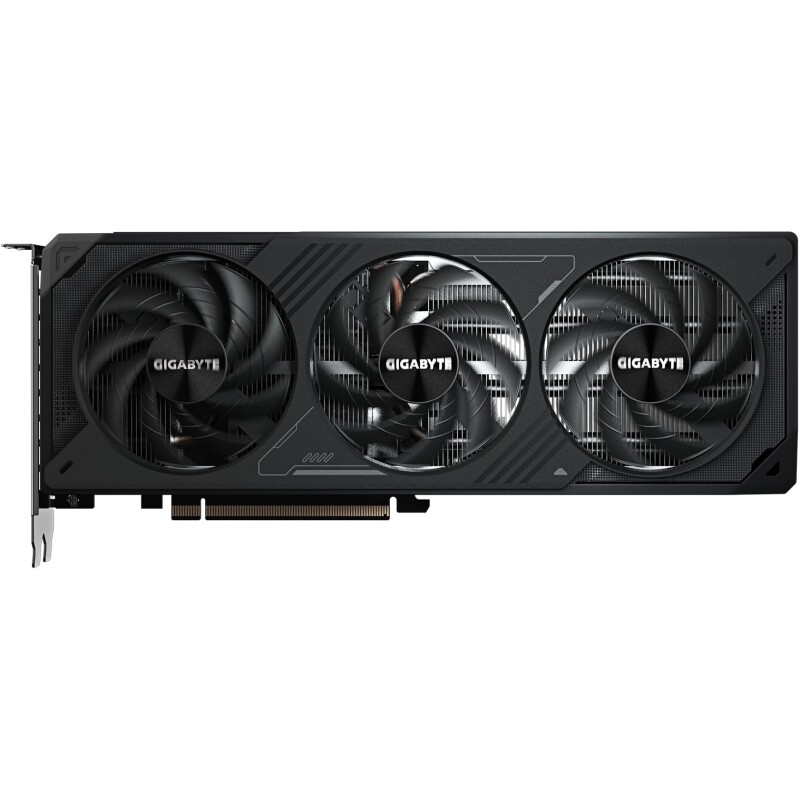

WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
NVIDIA SFF-ready
Reinforced structure
SPECIFICATION
Graphics Processing
GeForce RTX 5070
Core Clock
2542 MHz (Reference card : 2512 MHz)
CUDA Cores
6144
Memory Clock
28 Gbps
Memory Size
12 GB
Memory Type
GDDR7
Memory Bus
192 bit
Card Bus
PCI-E 5.0
Digital Max Resolution
7680×4320
Multi-View
4
Card Size
TBD
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
TBD
Power Connectors
16 Pin x 1

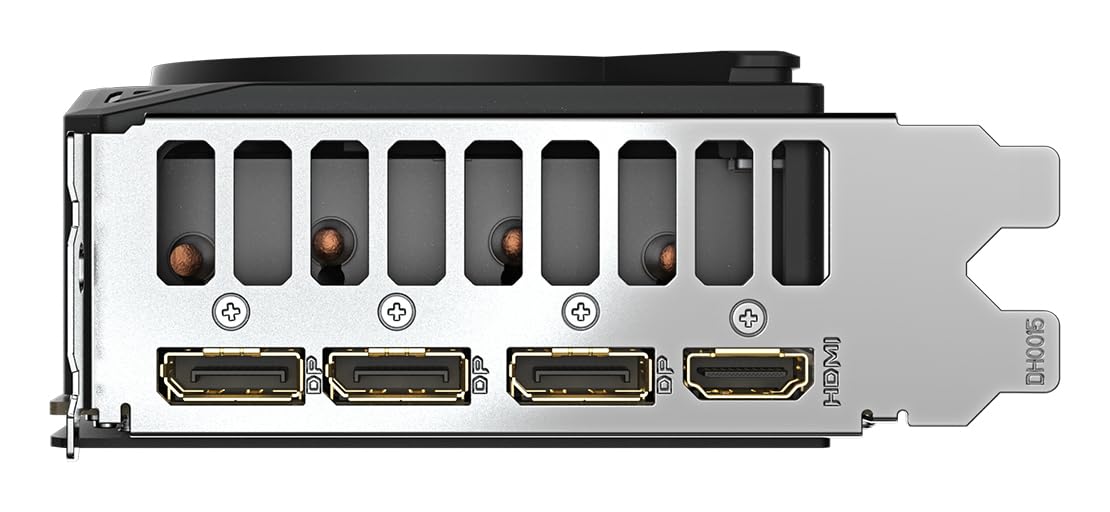

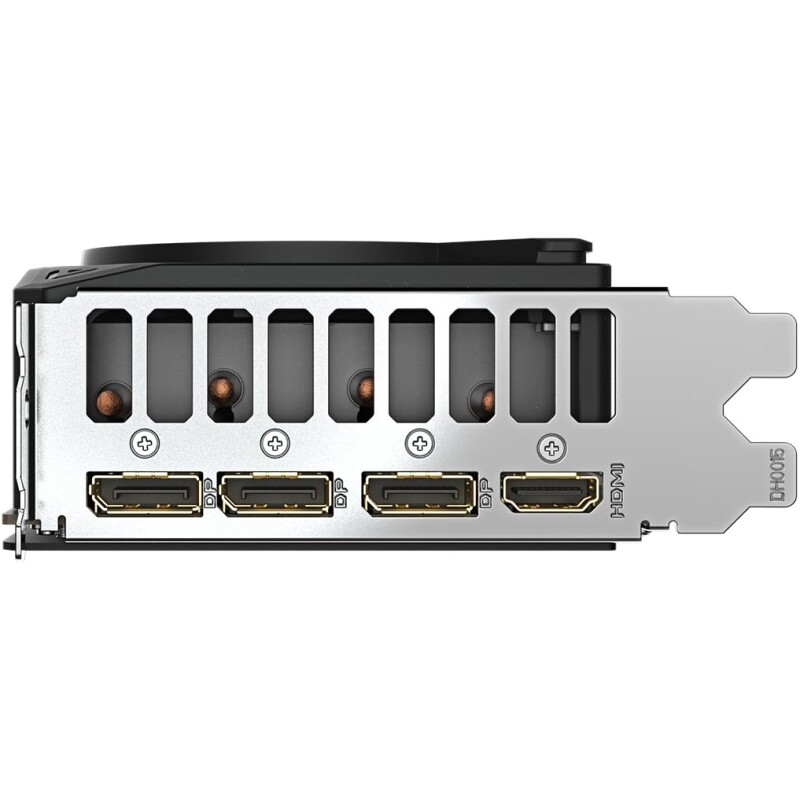

Output
DisplayPort 2.1b x 3
HDMI 2.1b x 1
Accessories
Quick guide
1 x 12V-2×6 to 2x PCIe 8pin adapter
