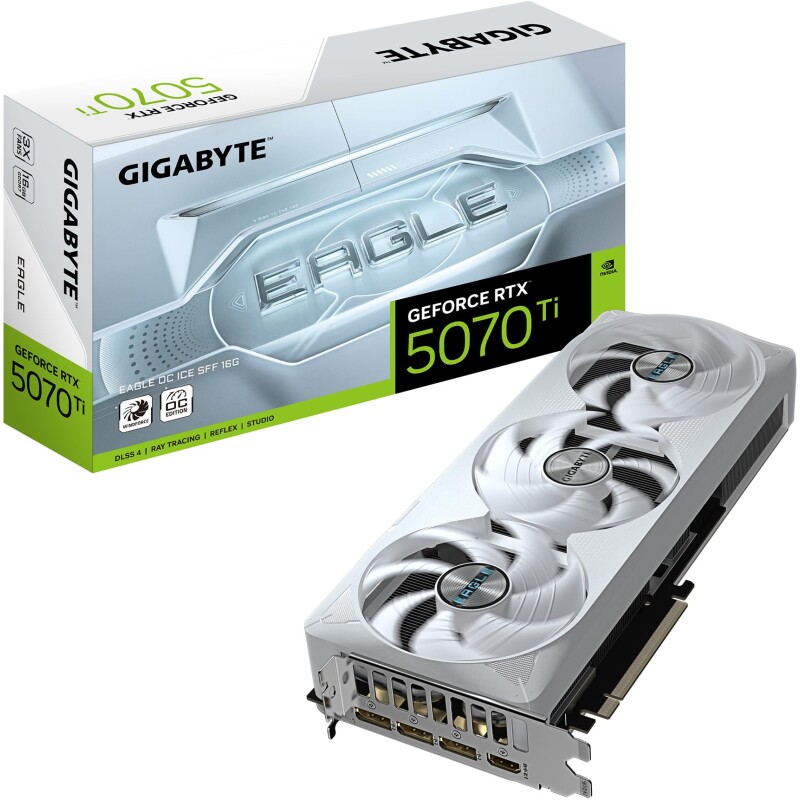

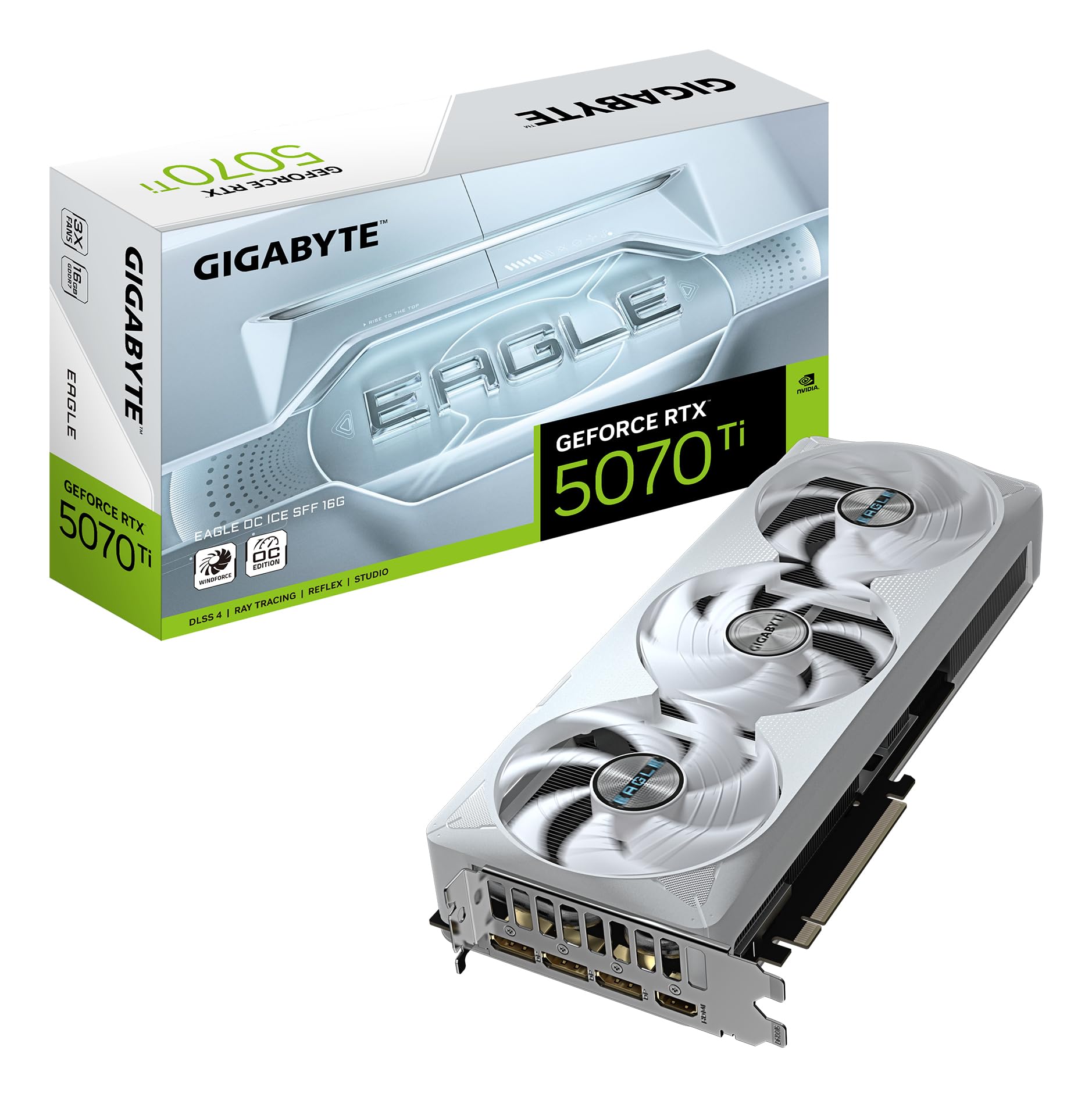

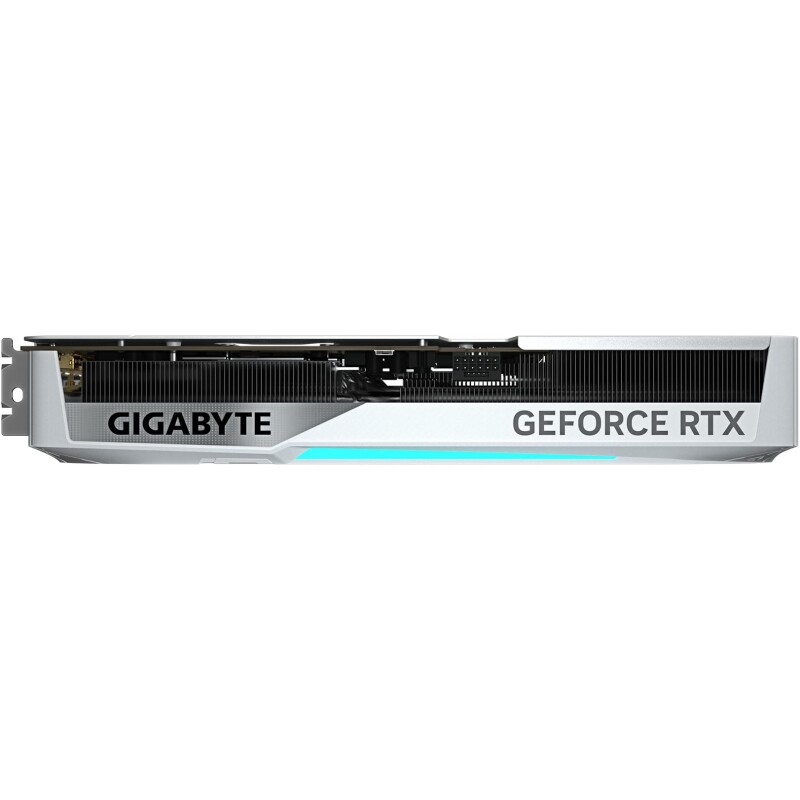

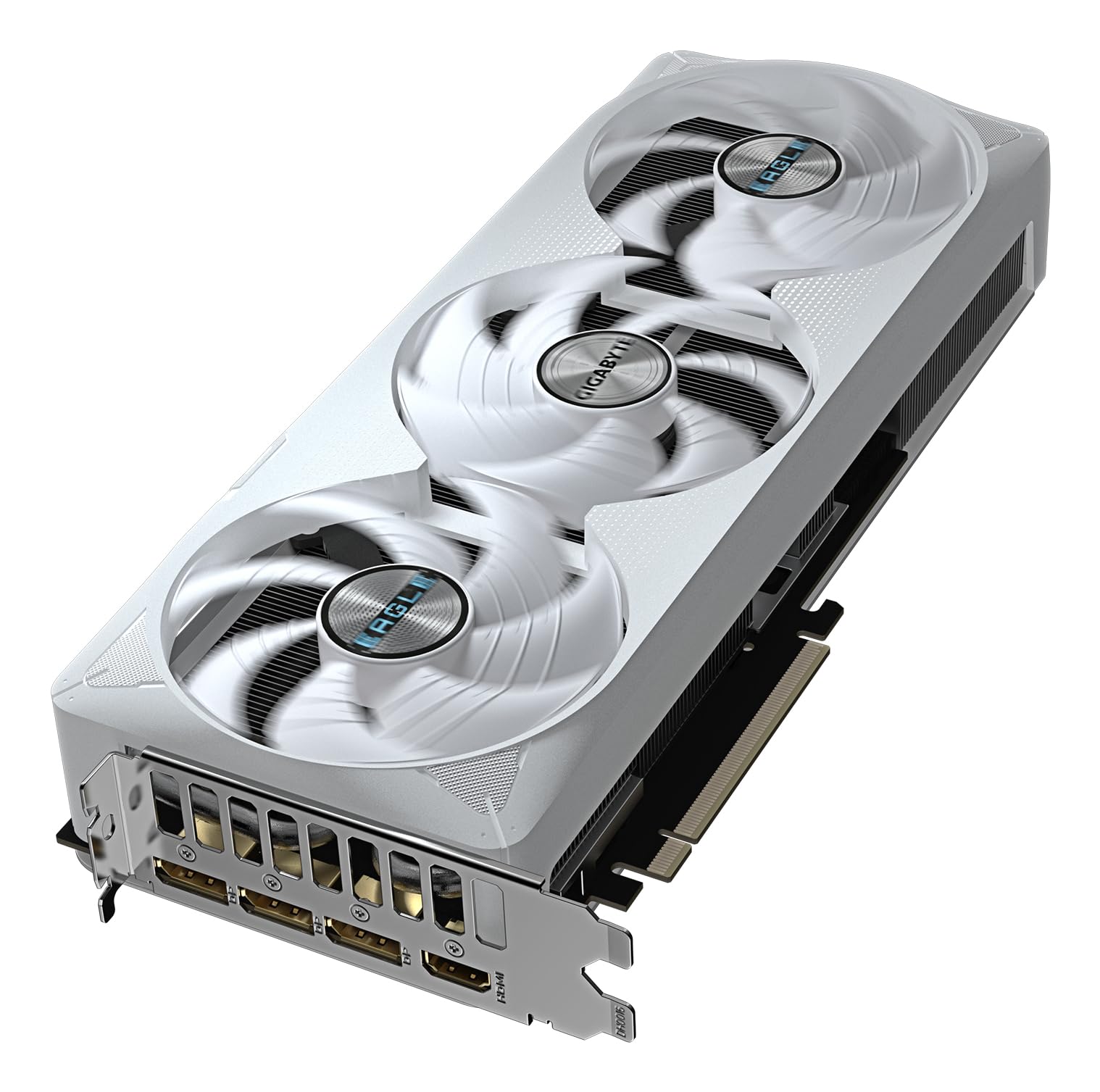

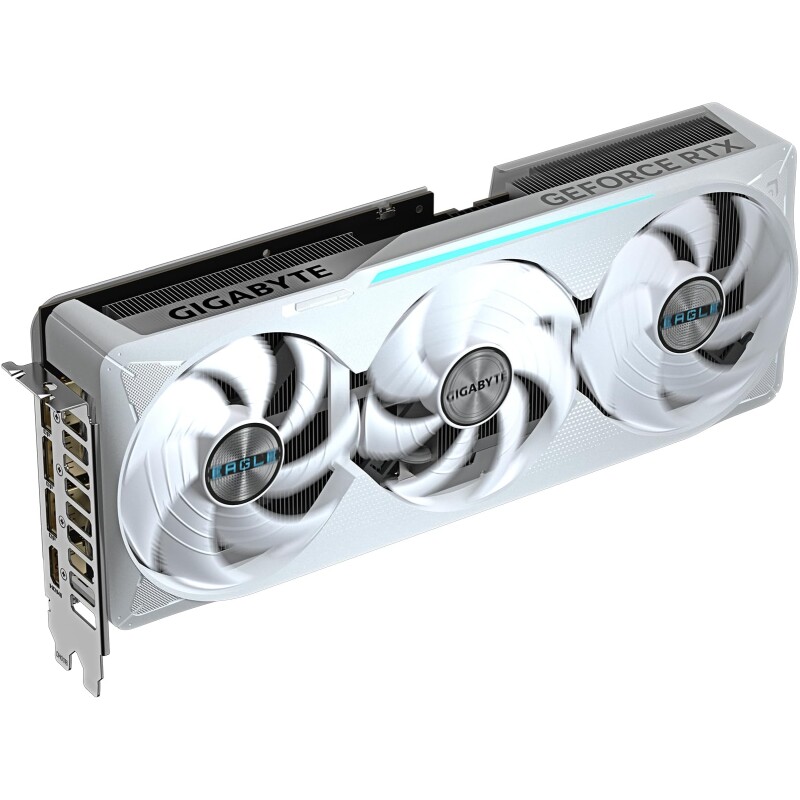

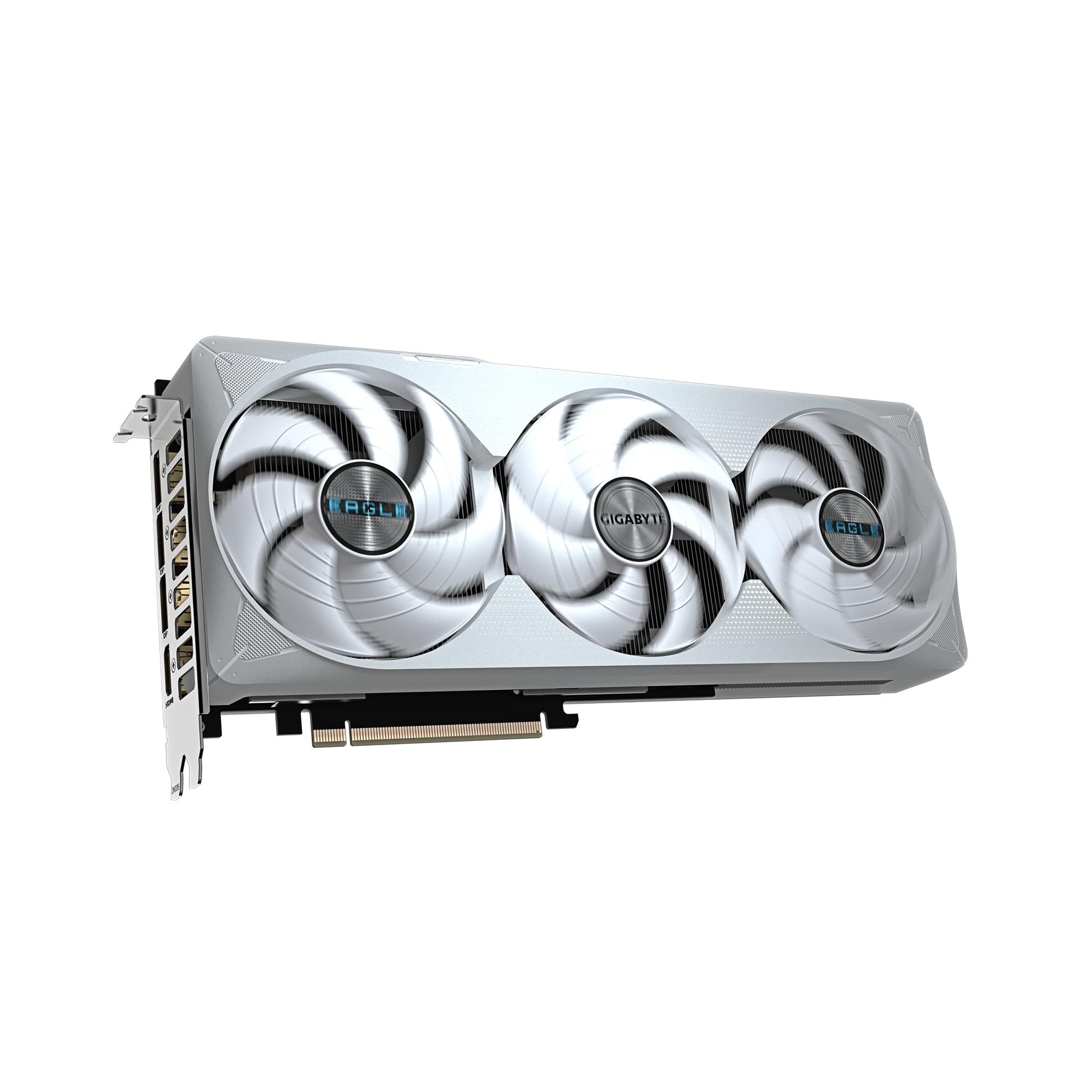

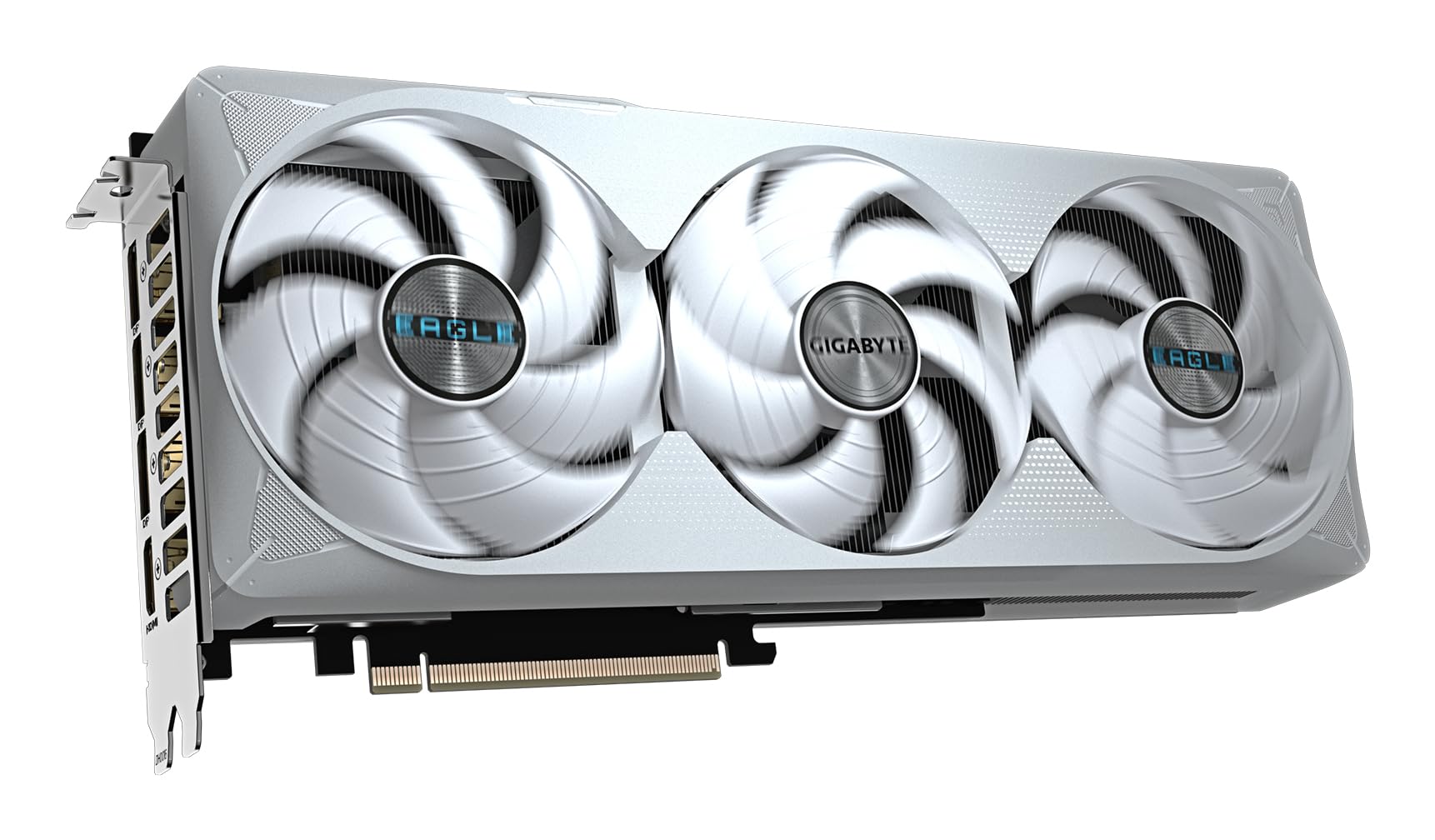

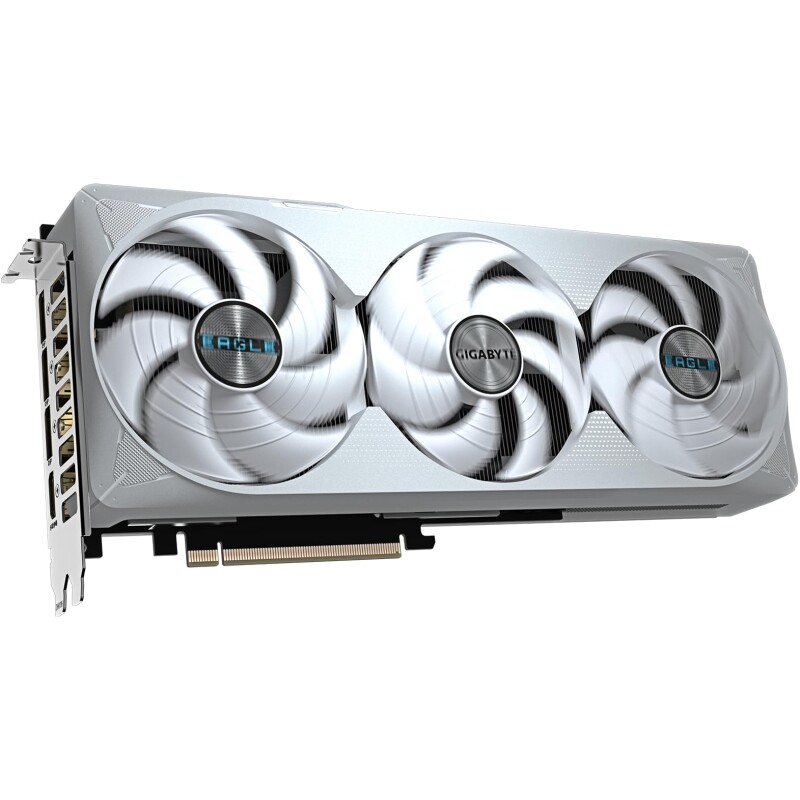

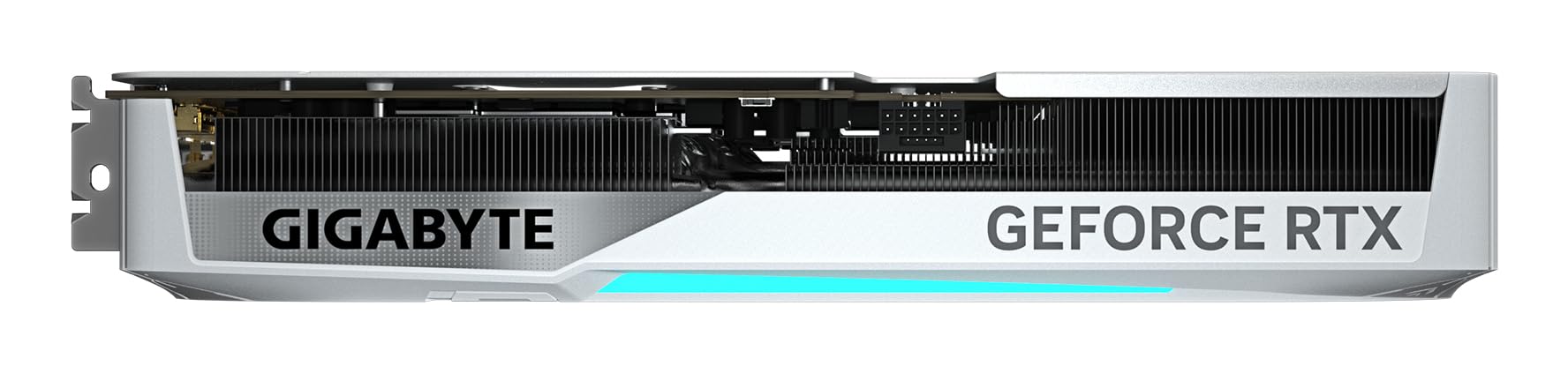

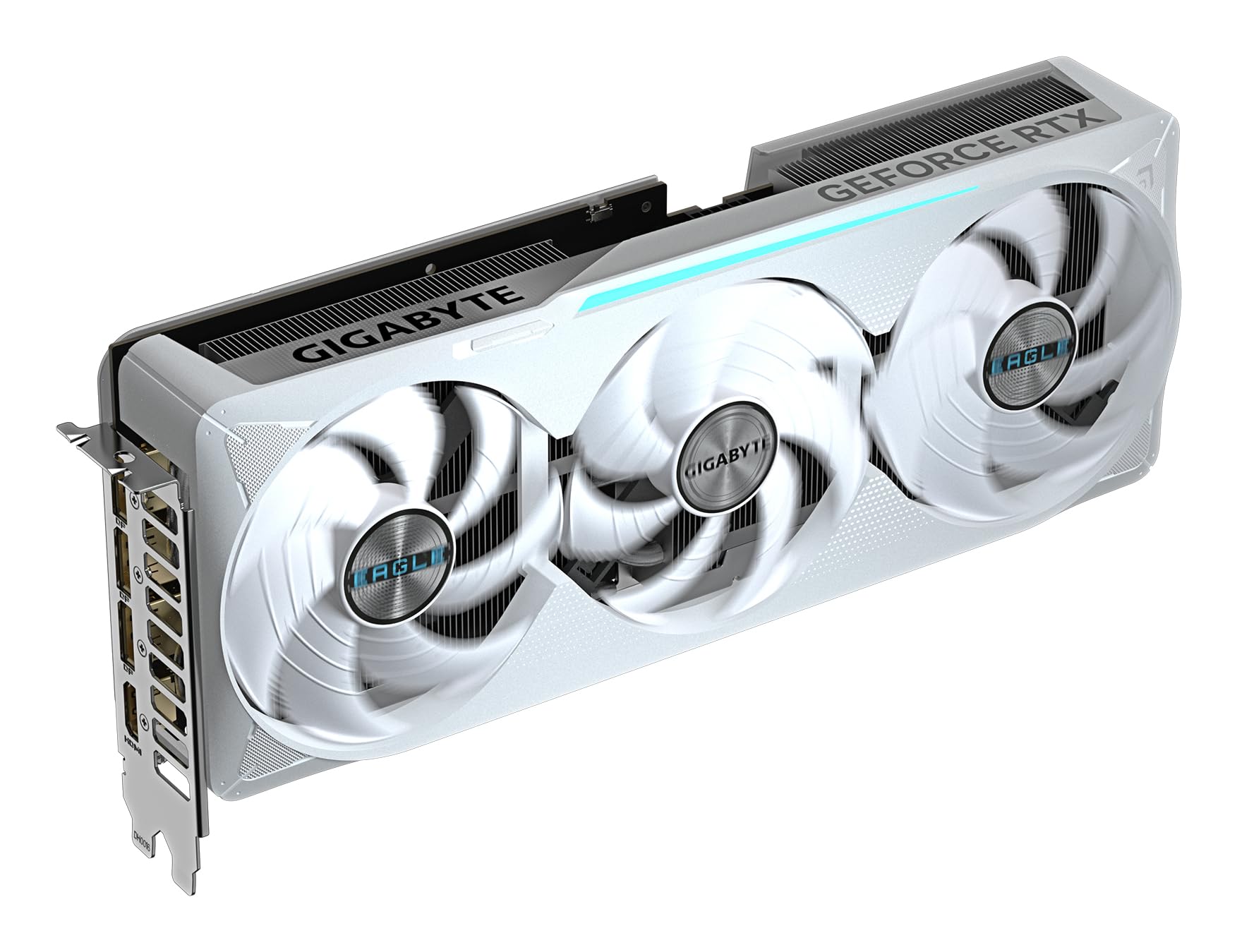

GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface

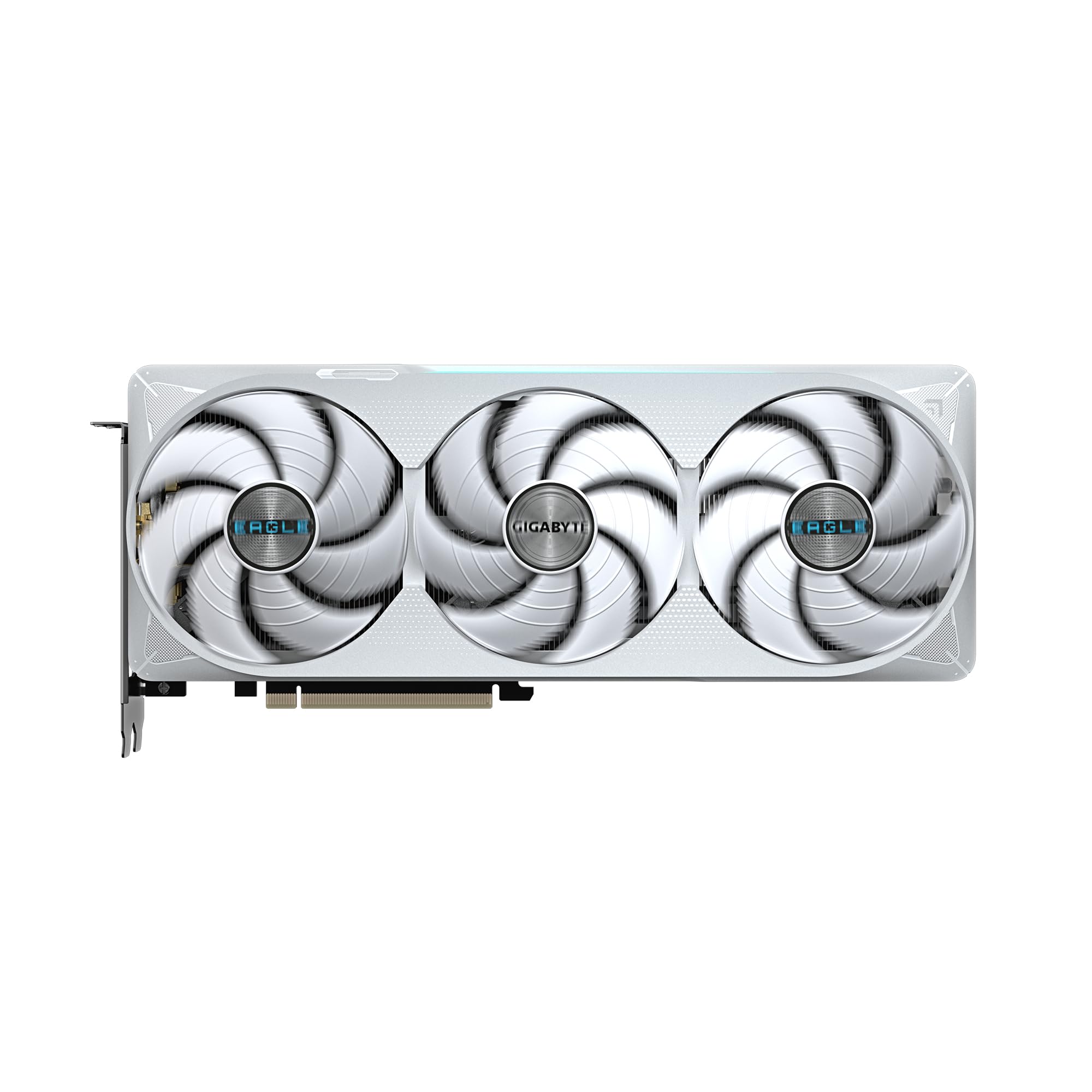

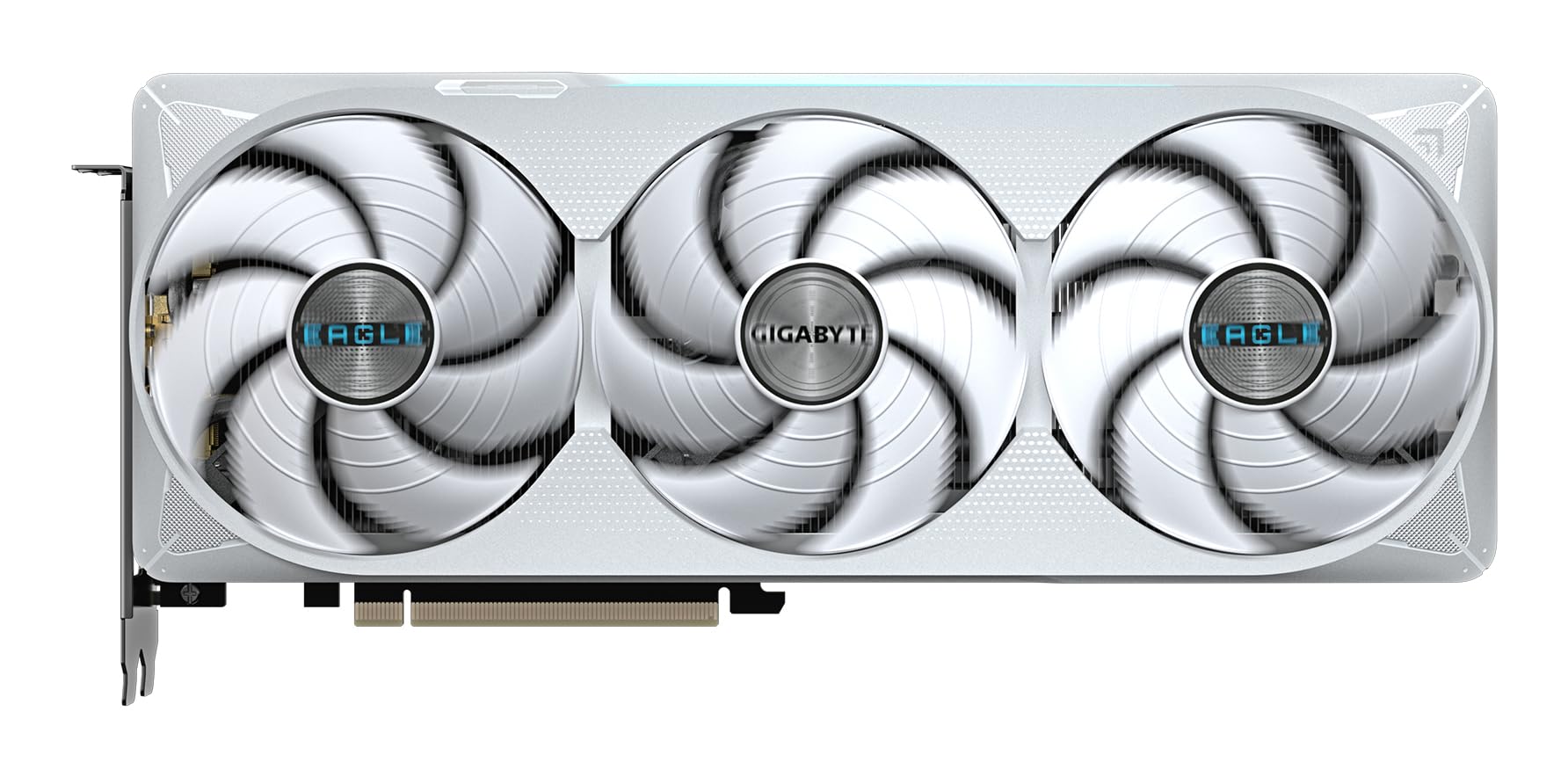

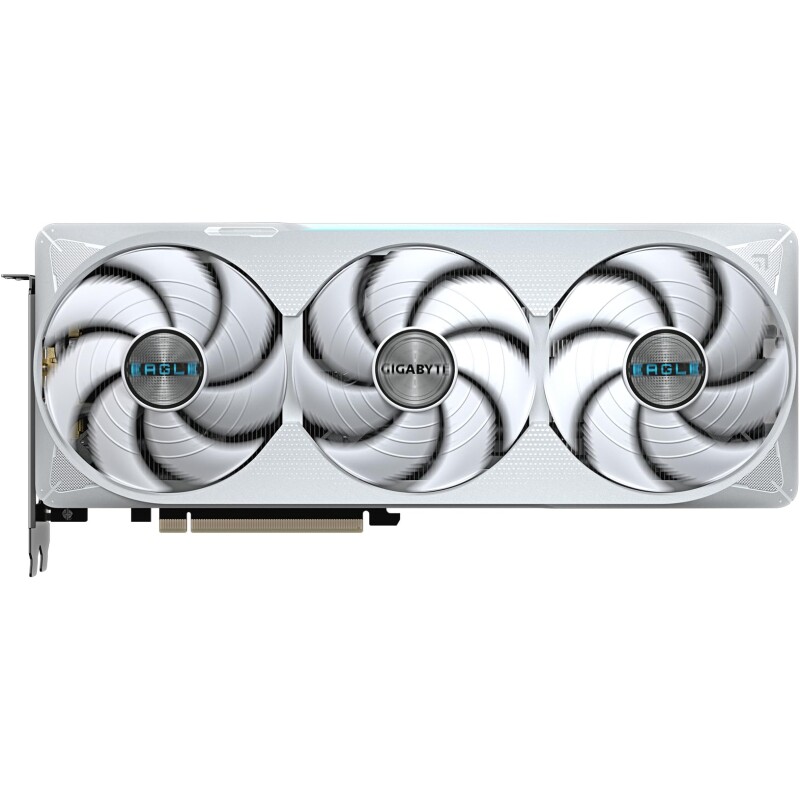

WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
SPECIFICATION
Graphics Processing
GeForce RTX 5070 Ti
Core Clock
2542 MHz (Reference: 2452 MHz)
CUDA Cores
8960
Memory Clock
28 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital Max Resolution
7680 x 4320
Multi-View
4
Card Size
L=304 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
750W
Power Connectors
16 pin x 1

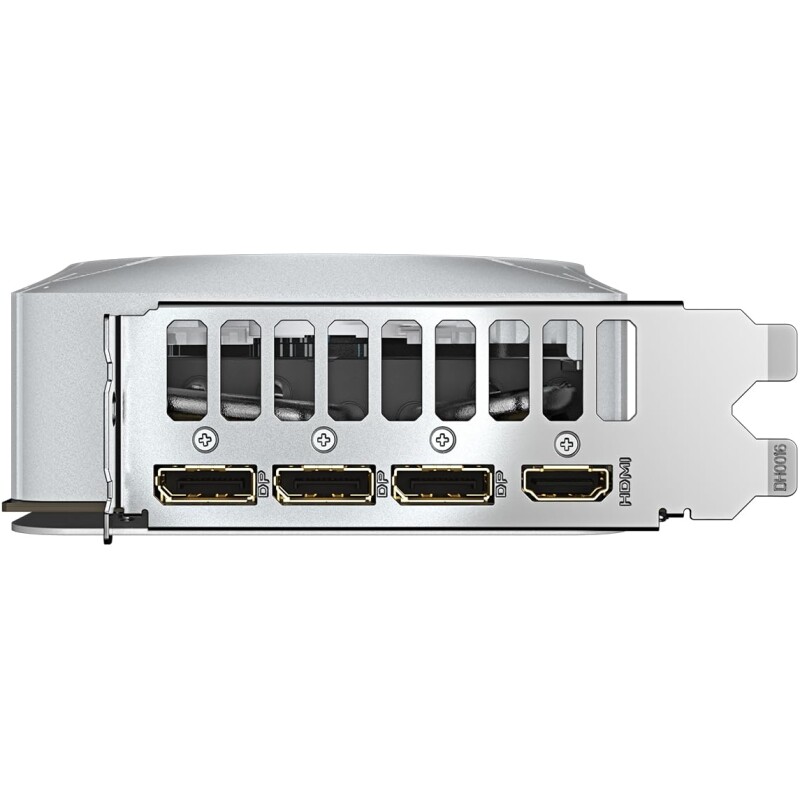

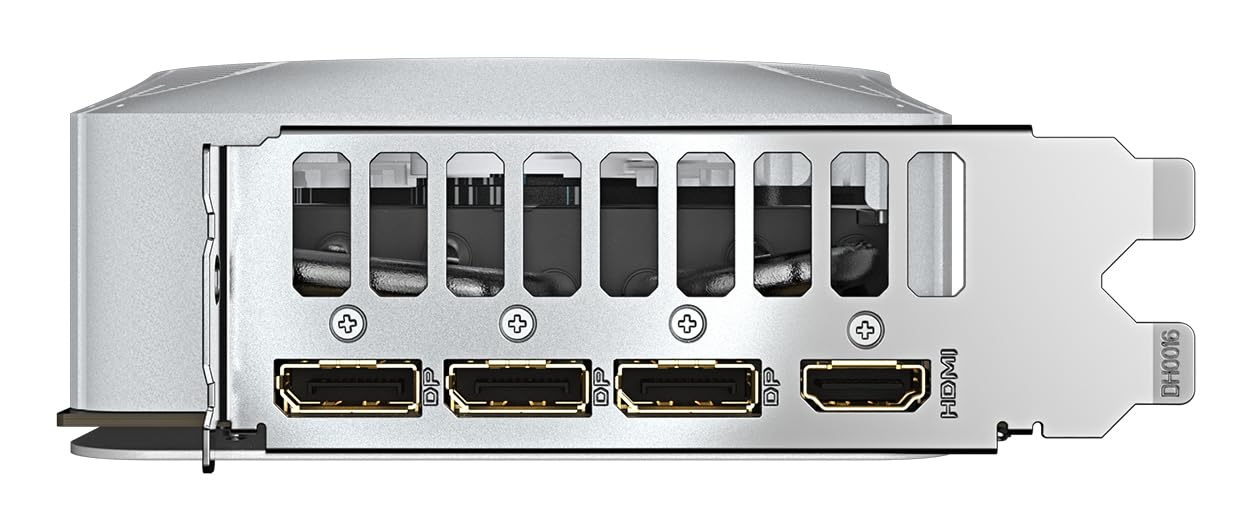

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1
Accessories
VGA manual
1 x 12V-2×6 to 3x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual
