- Key Features
Supports AMD Socket AM5 Ryzen 9000, 8000 and
7000 Series Processors
8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC)
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
Graphics Output Options: 1 x HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
1 x Blazing M.2 (PCIe Gen5x4)
2 x Hyper M.2 (PCIe Gen4x4)
4 x SATA3
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
1 x USB 3.2 Gen1 Type-C (Front)
6 x USB 3.2 Gen1 (2 Rear, 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe WiFi 6E +Bluetooth
Supports M.2 Bottom Heatsink,
BIOS Flashback

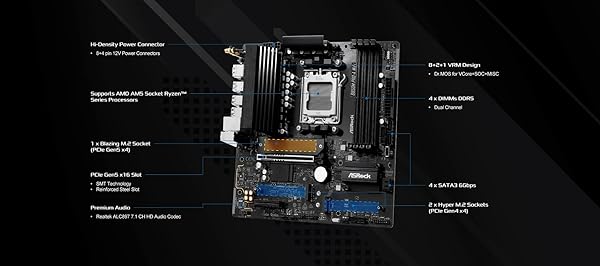

8 + 2 + 1 POWER PHASE DESIGN + DR.MOS
Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.
BLAZING M.2 (PCIE GEN5 x4)
Supports up to 3 x NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard.
PRE-INSTALLED I/O SHIELD
ASRock pre-installs the I/O shield for you as an assembly helper to speed up the set-up process.
M.2 BOTTOM HEATSINK
Dissipate heat efficiently through the motherboard PCB, maximize performance while maintaining system stability.
USB 3.2 TYPE-C (FRONT + REAR)
Providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
WiFi 6E (802.11axe)
Better and faster internet traffic with lower latency!
Specification
Platform
Micro ATX Form Factor: 9.6 in x 9.6-in, 24.4 cm x 24.4 cm
Unique Feature
Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
Rock-Solid Durability
8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
Pre-Installed I/O Shield
Ultrafast Connectivity
2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker
CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset
AMD B850
Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Expansion Slot
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode
Chipset:
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless LAN
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2×2 with extended 6GHz band support
The Wi-Fi 6E module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
2 x antennas to support 2 x (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.2
Supports MU-MIM
USB
CPU:
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
1 x USB 3.2 Gen1 Type-C (Front)
6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)
All USB ports support ESD Protection

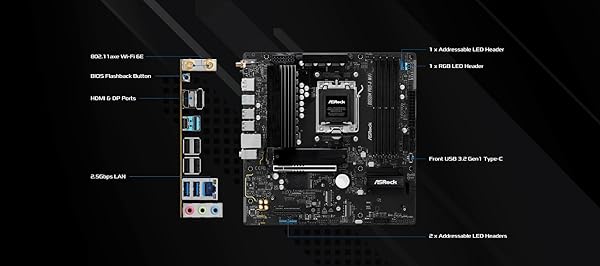

Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
M2_3 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Requires additional M.2 NVMe expansion cards to support RAID 10
Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers

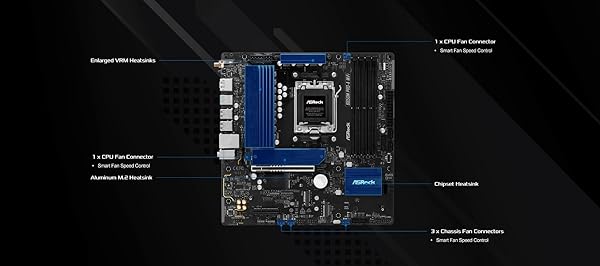

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Supports in total up to 12V/3A, 36W LED Strip
Support in total up to 5V/3A, 15W LED Strip
CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature
256Mb AMI UEFI Legal BIOS with GUI support
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

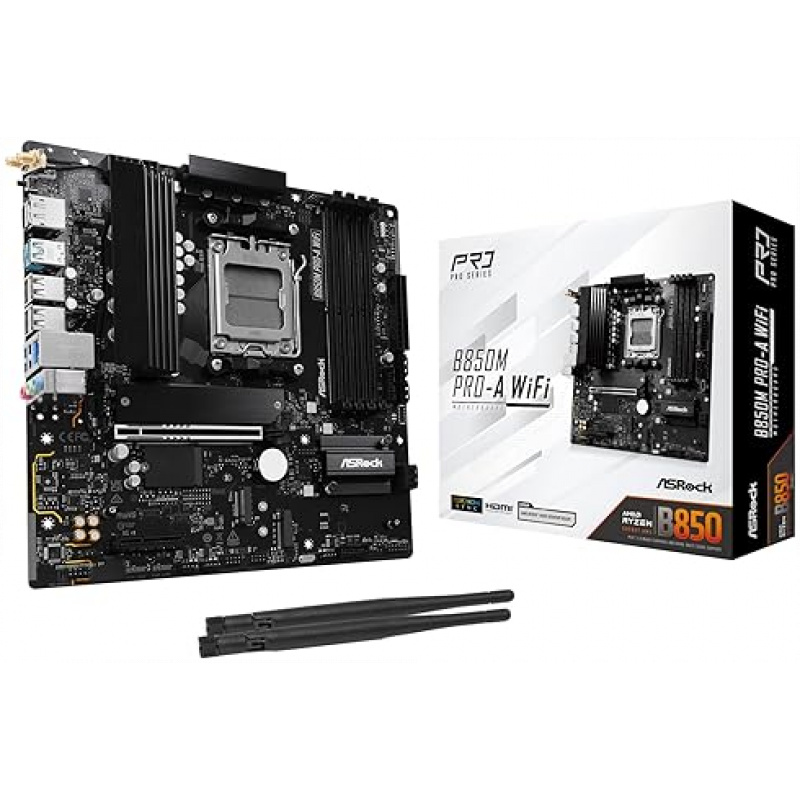

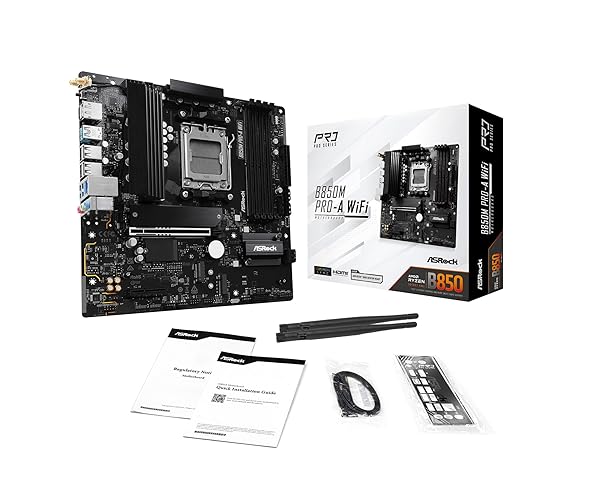

Accessories
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
ASRock B850M Pro-A WiFi AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2x USB-C Port, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port
£155.65
Only 1 left in stock
Additional information
| Weight | 1.24 lbs |
|---|---|
| Dimensions | 6.1 × 26.6 × 30 in |
